Electric Hoist Single Girder Overhead Crane

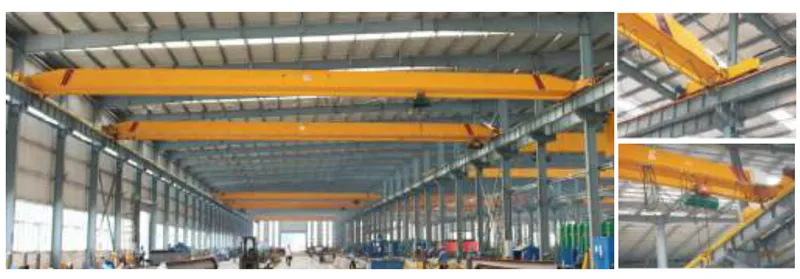

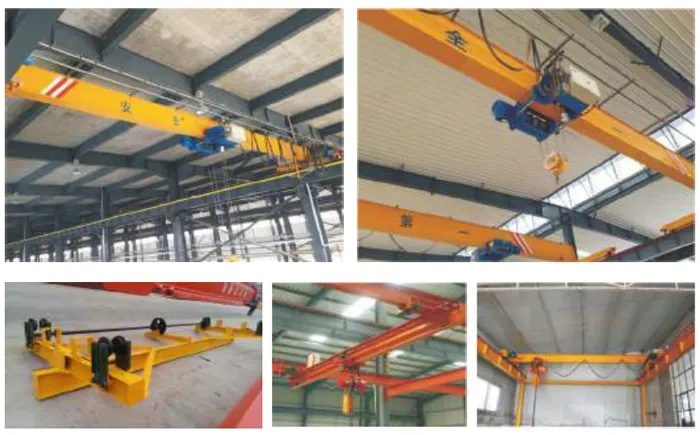

The electric hoist single-girder overhead crane is improved and designed on the basis of the LD model. It is characterized by a more reasonable structure and higher-strength steel as a whole. Used together with the CD1 model, MD1, and HC model electric hoists as a complete set, it is a light-duty crane with a capacity of 1 to 20 tons. The span is 7.5 to 31.5 meters. The working grade is A3-A5. Working temperature is-25°C to 40°C.
Specifications
| Capacity (T) | 1, 2, 3, 5, 10T | 16,20T | ||||||||||
| Span (M) | 7.5~31.5M | |||||||||||
| Overhead crane travelling mechanism | Travelling speed (m/min) | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 | |
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | ||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | ||||||
| Power (kw) | 2×0.8 | 2×1.5 | 1.5×2 | 2.2×2 | 2.2×2 | |||||||
| Rotation (m/min) | 1380 | 1380 | ||||||||||
| Lifting mechanism (electric hoist) & electric hoist traveling mechanism | Electric hoist model | CD1/MD1 | CD1/MD1/HC | |||||||||
| Lifting speed (m/min) | 8,8/0.8 | 3.53.5/0.35 | ||||||||||
| Lifting height (m) | 6,9,12,18,24,30 | 12,18,24,30 | ||||||||||
| Travelling speed (m/min) | 20(30) | 20(30) | ||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | ||||||||||
| Work duty | A3-A5 | |||||||||||
| Power supply | 380V 50HZ three phase | |||||||||||
| Wheel diameter | 270 mm | 370 mm | ||||||||||
| Width of trail | 37-70 mm | 37-70 mm | ||||||||||
