Core Introduction
Aerial work platform series covers scissor, mast, articulated, and telescopic models. Featuring robust steel and aviation aluminum construction, they deliver safe, stable, and versatile lifting solutions for diverse industrial applications.
- Fully formed manganese steel and aviation aluminum profiles ensure uniform thickness, high load capacity, and minimal dynamic clearance for smooth operation.
- Equipped with PLC and CAN bus control, anti-pinch protection, explosion-proof valves, and emergency descent systems for maximum operational safety.
- Options include self-propelled, crawler, and vehicle-mounted chassis with climbing abilities up to 45%, easily handling complex terrains and narrow spaces.
Discuss Your Project

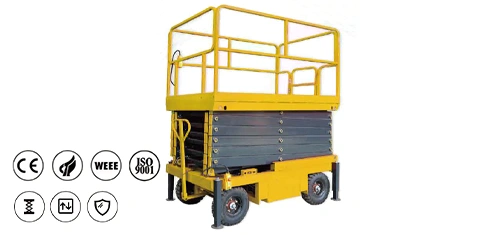

XB
Trailer Mobile Scissor Lift Platform
Fully formed manganese steel hinge boom with uniform thickness. Standard cold-formed groove guide rail, nylon slide as the guide wheel, large contact surface, stable lifting, minimal shaking. Detachable guardrail for easy access to places with height restrictions.
- Lifting Height:18 m
- Platform Size:3.06*1.62 m
- Load Capacity:300 kg
XB

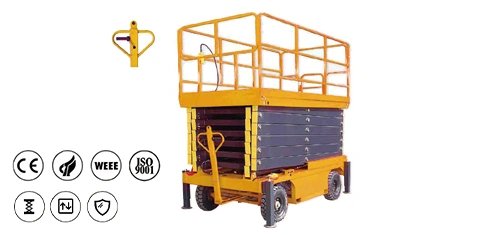

Electric Traction Mobile Scissor Lift Platform
Electric driving system; one person can move it easily. H-beam wide-base frame enhances stability. Detachable guardrail for easy access to places with height restrictions. Multifunctional handle; can be operated with one hand. Rainproof control box, suitable for various weather conditions.
- Lifting Height:18 m
- Platform Size:3.06*1.62 m
- Load Capacity:300 kg

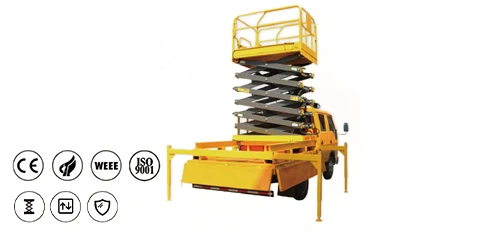

XB
Vehicle-mounted Mobile Scissor Lift Platform
The use of vehicle direct current or engine power to drive the lift is adapted for high-altitude operation of large mobility. Fully formed manganese steel hinge boom with uniform thickness. Customized special vehicle steel frame. Detachable guardrail for easy access to places with height restrictions.
- Lifting Height:4/6/8/12 m
- Platform Size:2.01*1.13/ 2.462*1.21 m
- Load Capacity:500/1000 kg
GTJZ

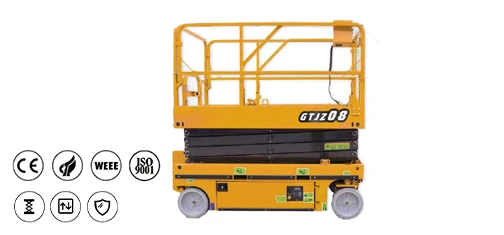

Self Propelled Scissor-Type AWP
The driving control is accurate, stable, easy, and reliable. Hydraulic drive platform for lifting and walking. Full-height driving, equipped with a variety of safety protection devices, for high safety. Extension/retractable table,collapsible guardrail for easy access to places with height restrictions.
- Max Platform Height:6/8/10/11.85/13.8 m
- Platform Size:2.25*1.13/ 2.636*1.13 m
- Load Capacity:230/320/450 kg
GTJZM

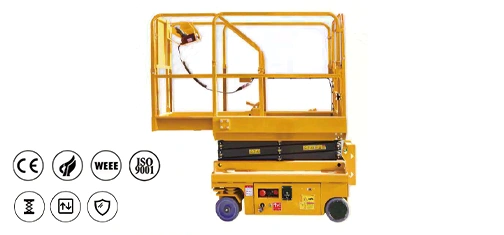

Mini Self-Propelled Scissor-Type AWP
The machine is small in size and light in weight to meet the requirements of narrow-space operation. Compact design with a small turning radius. Extendable/telescopic table to increase the area of high-altitude operation. Fully formed manganese steel hinge boom with uniform thickness.
- Max Platform Height:3/4/5.6/6 m
- Platform Size:1.29*0.716/1.68*0.74 m
- Load Capacity:230/260 kg

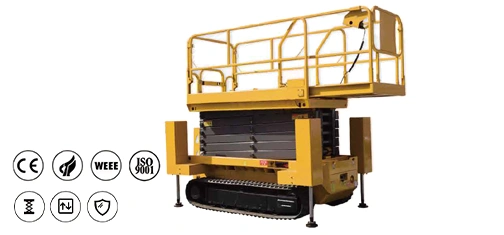

GTJZC
Crawler Self-Propelled Scissor-Type AWP
Steel tracked chassis; can be in-situ steering, suitable for a variety of complex road surfaces. The worktable can be extended lengthwise to expand the scope of work to meet some special needs. Excellent stability, strong bearing capacity,ultra-low noise. With a brake system, climbing and downhill operation is trouble-free.
- Max Platform Height:8/10/12/14 m
- Platform Size:2.26*1.12/2.7*1.3 m
- Load Capacity:320/450 kg

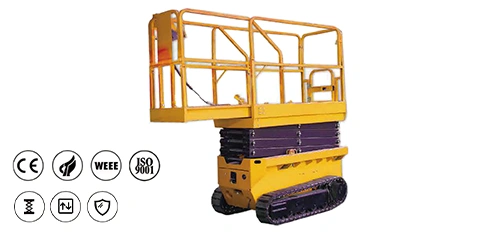

GTJZCM
Mini Crawler Self-Propelled Scissor-Type AWP
Rubber-tracked chassis; can steer in situ with little damage to the ground. Extendable/telescopic table to increase the area of high-altitude operation. Small and flexible, with strong passability. Lifting with proportional valve control, smooth and comfortable.
- Max Platform Height:6.7 m
- Platform Size:1.68*0.74 m
- Load Capacity:230 kg
GTJZ-O0.75-20

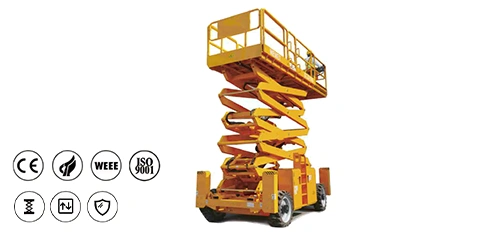

Off-Road Self-Propelled Scissor-Type AWP
The machine has strong off-road performance and strong adaptability to extreme working conditions. Ground clearance up to 0.4m, strong passability. Collapsible platform, high passability, wide range of operation. Off-roadtires, strong grip, suitable for complex road surfaces.
- Max Working Height:22 m
- Platform Size:4.59*2.25 m
- Load Capacity:750 kg
N

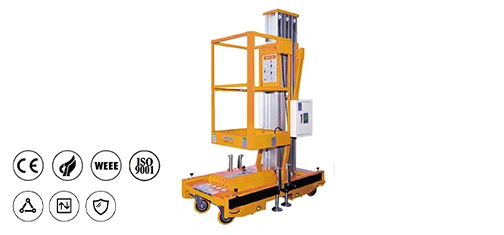

Single Mast-Type AWP
High-strength aviation aluminum profile as a lifting arm, safe and reliable. Mast with a built-in sliding block; dynamic clearance is small for more stable lifting operation. Meets the bearing design requirements at 115%. Double lifting drive chain, strong bearing capacity, high safety factor.
- Max Working Height:11.7 m
- Platform Size:0.6*0.55 m
- Load Capacity:350 kg

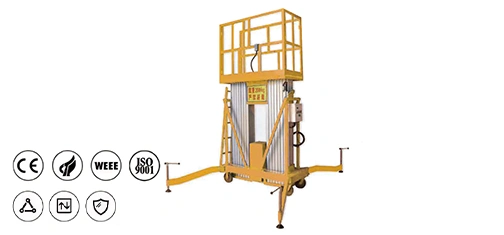

N
Double Mast-Type AWP
High-strength aviation aluminum profile as a lifting arm, safe and reliable. Mast built-in sliding block; dynamic clearance is small for more stable operation. Meets the bearing design requirements at 115%. Double-lifting drive chain, strong bearing capacity, high safety factor
- Max Working Height:15.7 m
- Platform Size:1.48*0.6 m
- Load Capacity:200 kg
GTWY1

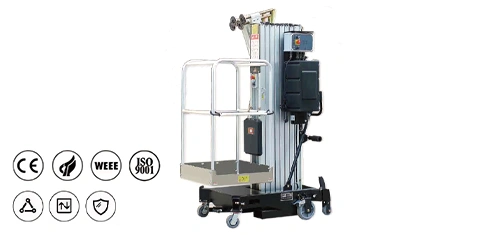

Single Mast Vertical Lift
High-strength aviation aluminum profiles serve as lifting arms, providing safe, reliable support. The mast has a built-in PTFE slider with a low friction coefficient and low thermal expansion and contraction coefficients, and is maintenance-free for life.
- Max Working Height:8/8.8/11.2/12.2/14 m
- Platform Size:0.67×0.65×1.13 m
- Loading Capacity:136/120/150 kg

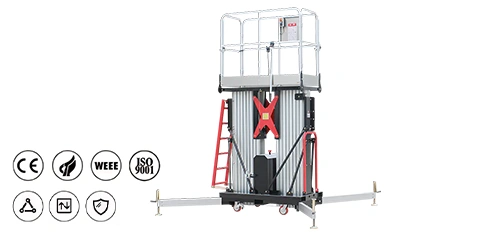

GTWY2
Double Masts Vertical Lift
High-strength aviation aluminum profiles are used as lifting arms, which are safe and reliable. The mast has a built-in PTFE slider with a low friction coefficient and low thermal expansion and contraction coefficients, and is maintenance-free for life. Super wear-resistant cable, moves with the aluminum alloy roller, passed 50 times/minute test, 5 million times test.
- Max Working Height:10/12.4/14/16/18 m
- Platform Size:1.45×0.7/ 1.8×0.7 m
- Loading Capacity:150/200/250 kg
Lower OperCost & Maintenanceating Costs, Higher ROI
Lower Operating Costs, Higher ROI
Industry-Leading R&D and Standards
200+ engineers, 700+ patents, and active ISO/GB crane standard participation drive innovation.
Advanced Manufacturing and Full Chain
120+ robot lines, 85% automation, and in-house core components ensure 50% faster delivery.
Tailored Solutions and Global Track Record
500t+ cranes for nuclear and aerospace, serving 10,000+ customers across 122+ countries.
Applications
Diverse Applications Across Packaging & Printing Industry

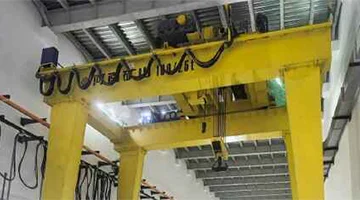

100t Double-Girder Gantry Crane for Nuclear Power
Features listed include servo control, minimum inching distance of 0.5 mm, smooth lifting, variable-frequency vector control, PLC anti-sway control with positioning accuracy within 5 mm, modular design, high component utilization, and double braking for safe hoisting.

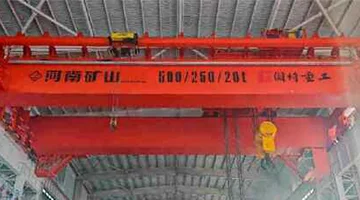

500t New Double-Girder Crane for Wind Power Project
For a world-class offshore wind power project, the company supplied 43 sets of new crane products. A 500-ton double-trolley, new double-girder crane was installed and is operating well. Features include lightweight hoisting mechanism design, high lifting height, automatic fast/slow speed adjustment, reduced energy consumption, high-precision multi-hook synchronization, electrical antisway control, digital and image monitoring protection, and lifecycle management.

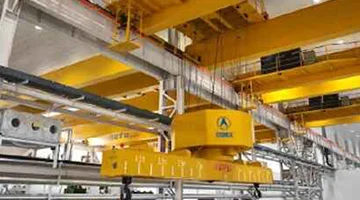

Lower-Rotating Overhead Beam Crane for Aerospace Project
The crane uses PLC + inverter closed-loop vector control, anti-sway function, remote/manual/tablet control, servo-controlled automatic spreader extension and rotation, high-precision detection for autonomous obstacle avoidance, remote monitoring, and lifecycle management.

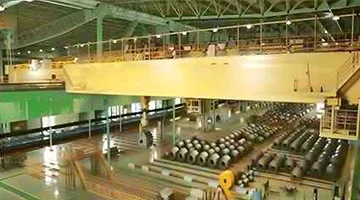

Baowu Group Unmanned Crane
Henan Mine supplied 71 sets of lifting equipment for Baowu Group's Zhanjiang project. In the post-rolling warehouse and finished-product warehouse areas, 15 cranes adopted unmanned operation technology, enabling three-dimensional crane positioning, automatic loading/unloading, and functional control of execution mechanisms. These unmanned cranes are also important parts of Baowu's warehouse management system.
Service & Support
Longge provides full-process service from sample confirmation and quality tracking to after-sales support.
- Free samples for testing
- Full traceability on quality
- Priority for urgent orders
Ready to upgrade your project?
24/7
24-Hour Response
Please let us know your basic requirements. Our technical team will respond within 24 hours.
Talk to an Expert
FAQ Related To Material Handling &Weighing Equipmen
Can you customize cranes for specific, demanding industries like nuclear power or aerospace?
A
Yes. We have a proven track record of designing and manufacturing highly specialized cranes. For the nuclear power sector, we integrate single-failure protection, 8-level seismic design, and specialized wire-rope reeling systems. For aerospace, we provide lower-rotating overhead beam cranes with servo-controlled spreaders, autonomous obstacle avoidance, and remote monitoring for complete lifecycle management.
How do you ensure product quality and shorten delivery times?
A
Our manufacturing is driven by over 120 robot production lines and 3,500+ sets of high-end CNC equipment. By implementing advanced processes like the U-shaped groove one-time forming (which reduces welding by 50% and boosts efficiency by 45%) and flexible production lines, we minimize work-in-progress inventory, ensure consistent quality, and shorten customer delivery cycles by up to 50%.
What international quality and safety standards do your cranes comply with?
A
We strictly adhere to global standards. We are a committee member of the National Technical Committee for Crane Standardization and participate in the ISO/TC96 domestic technical expert group, having helped draft standards like ISO 7752-5 and ISO 9374-5. Our facilities are ISO certified, and our equipment features advanced PLC + inverter closed-loop vector control, intelligent anti-sway algorithms, and multiple safety protection devices.
What kind of global after-sales support and service do you provide?
A
We have 428 sales and service outlets covering domestic and international markets, exporting to over 122 countries. We provide comprehensive full-lifecycle services, including overseas installation guidance, on-site training, remote video monitoring, predictive maintenance, and fast spare parts supply to ensure your operations run smoothly worldwide.
What makes Henan Mine a reliable long-term partner compared to other suppliers?
A
Beyond our 500+ national honors (including
