Transfer Carts
Transfer carts are used to carry loads along assembly lines, transfer material from one workstation to the next, and store and transport an entire shift's worth of production. They can even be used as a stable yet movable machine base.
Machine Highlights
- KPT type is powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
- KPJ type is powered by the cable from the cable reel. With the cable reel, the moving distance is increased to 200 meters compared with the KPT type.
- KPX type is powered by the storage battery. Without the cable, this kind of transfer cart is more flexible and safe. However, the capacity and the duty group are all affected by the storage battery. Especially, the price and the lifespan of the battery are also an important issues.
- KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.
- KPD/PKDZ type is powered by the low-voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type; the system is also more complicated and expensive.
- Manual Transfer Cart: Manual transfer carts can be pushed or pulled by operators over smooth or semi-smooth floors. They are easily maneuvered without a forklift. These rugged manual carts are versatile and can be easily customized to suit your application
Specifications
| ProductName | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300 tons, can be customized per client demand | Running distance | Ordinary goods, such as steel plate, workpiece, equipment, etc special goods, such as coil. Column, ladle, etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t, steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Main components

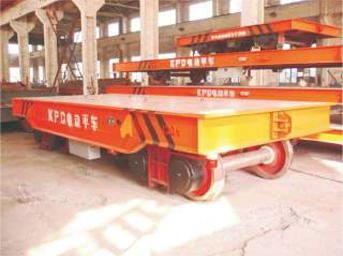

Rail Transfer Cart

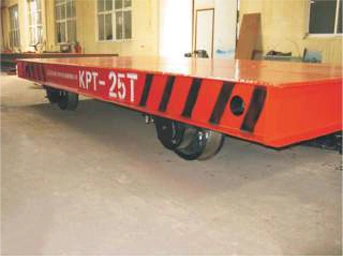

Towed Rail Trailer

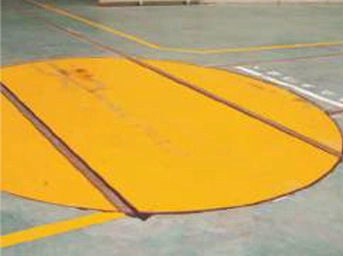

Rotate Transfer Cart

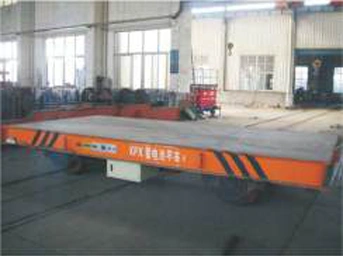

Battery Powered Transfer Car

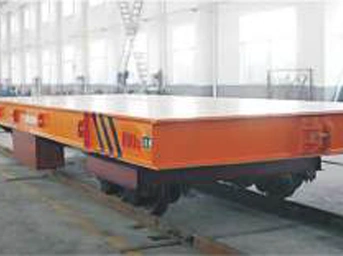

Motorized Transfer Trolley
Hot Products
Crane Drum
The crane drum is the component to wind wire rope in the lifting mechanism. The crane drum consists of a drum shaft, a flange-type annular gear, a drum hub, bearings, bearing pedestal.
Grab Bucket
A grab bucket is a bucket that can open and close to grasp sediment and all kinds of bulk cargo. It is a kind of spreader that mainly relies on the left and right two combined bucket or a multiple-jaw opening to crawl and unloading Bulk materiai.
