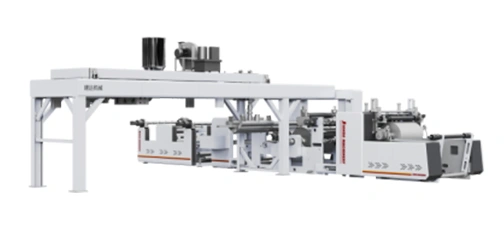

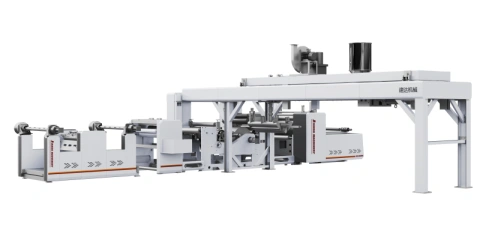

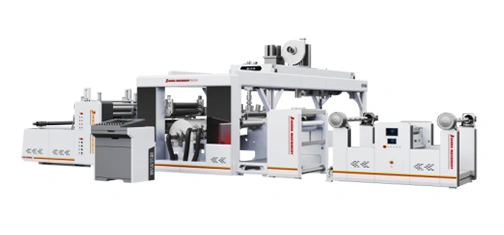

GII Single Side Extrusion Lamination Machine
JDLM1300/100B, 1700/100B
GII Single Side Extrusion Lamination Machine
This is a high-speed extrusion lamination line capable of operating at speeds up to 180 m/min. It is designed for processing coating-grade resins—such as LDPE and PP—onto substrates including paper, aluminum foil, and non-woven fabrics. The line is widely used in the production of composite flexible packaging materials for applications such as pharmaceuticals, food, office supplies, and construction.
Coating Width:
600-1200 mm, 900-1600 mm
Design Line Speed:
210 m/min
Max Extrusion:
280 kg/h
Specifications
| Model | JDLM1300/100B | JDLM1700/100B |
| Coating Width | 600-1200 mm | 900-1600 mm |
| Suitable Base Material | Paper (35~350gram/㎡), Non-Woven Fabric, Woven Fabric | |
| Design Line Speed Speed | 210 m/min Coating Speed: 150-180m/min, Precise Speed is based on the material and process technology. |
|
| Max Extrusion | 280kg/h | |
| Main Motor | 45 kw | |
| Total Power | ≈130kw | ≈150kw |
| Unwinder Diameter | ≤Φ1200 mm | |
| Winding Diameter | ≤Φ1300 mm | |
| Power Supply | 380/3/4/50 (Volt/Ph/Line/Hz) | |
| Note: As the products are developing day by day, the technical data are subject to change without notice. Different size models can be custom-made. | ||
FAQ
A builder-grade materials supplier is studying coated kraft paper for construction use. Why is extrusion widely adopted?
Extrusion coating, which balances strength and water resistance, is the mainstream processing method for construction packaging paper.
Main components

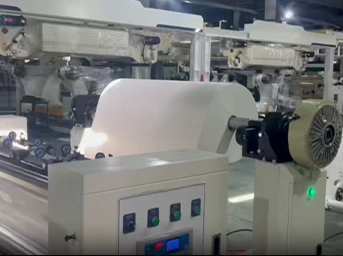

Unwinding

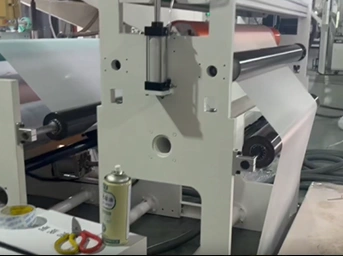

Corona Treatment

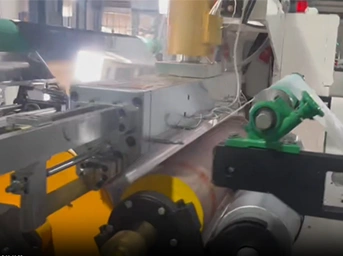

Lamination

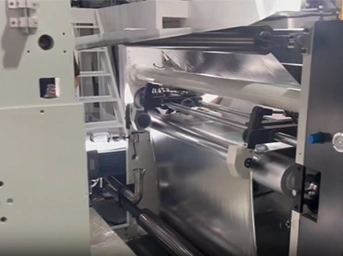

Secondary Unwinding

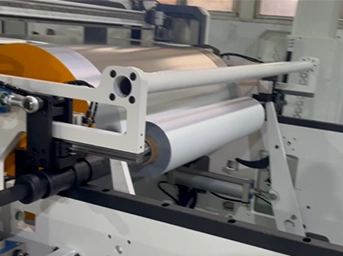

Rewinding
