W-EPS960/950
W-EPS960/950

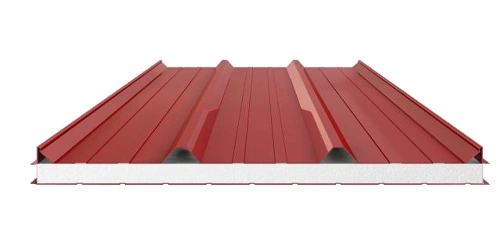

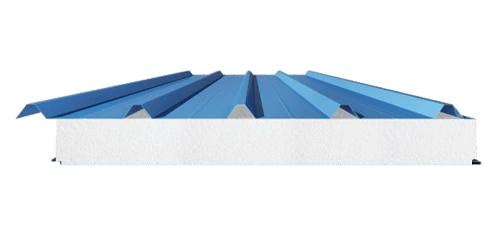

EPS Roof Panel
- Enhanced Weatherproofing — Overlapping joint with snap-on cap and hidden screws ensures a watertight roof seal.
- Higher Core Density — 12–22 kg/m³ EPS density offers improved compressive strength and insulation performance.
- Lightweight Construction — Reduces structural load while maintaining excellent thermal performance for large-span buildings.
Specifications
| Panel Thickness | 50, 75, 100, 150mm |
| R-Value | 1.2, 1.8, 2.4, 3.6m2k/w |
| EPS Density | 12kg/m3-22kg/m3 |

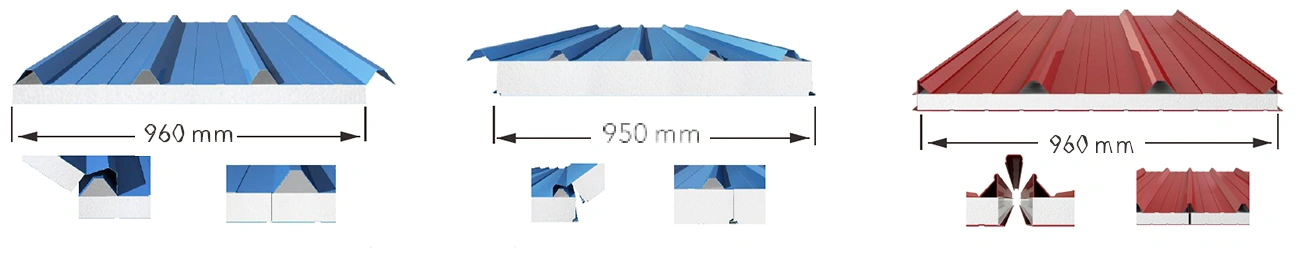

| Panel cover width | 950 or 960mm |
| Length | Max.11.8meters |
| Exterior face | 0.4 to 0.6mm, AZ40 Aluzinc galvanized and PE painting 20um, higher quality steel skin upon request |
| Interior face | 0.4 to 0.6mm, AZ40 Aluzinc galvanized and PE painting 20um, higher quality steel skin upon request |
| Color | As per RAL or customer sample |
| Connection | Zlock and overlapping and hidden screw with snap-on cap |
