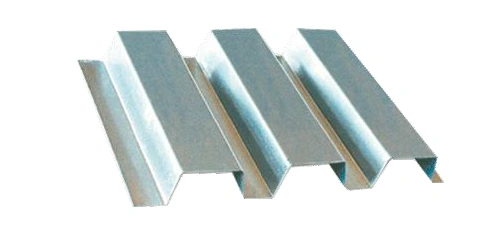

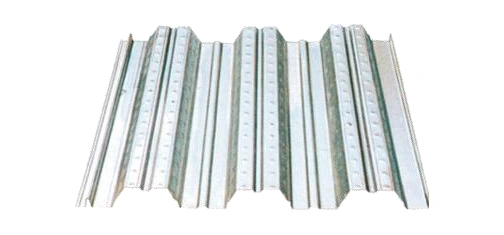

Floor Decking
• High-rise buildings
• Multiplexes and commercial buildings
• Power plants
• Mezzanine floors in industrial buildings and warehouses
• Multi-storeyed industrial buildings and warehouses
• Bridges and flyovers
• Walkways and Skywalks
• Railway stations and airports
Specifications
 |
Thickness (mm) | 0.7 | 0.8 | 1.0 | 1.2 | |
| Section of inertia cm⁴/m | 80.19 | 91.62 | 119.38 | 142.01 | ||
| Section of resistance cm³/m | 20.53 | 23.46 | 30.61 | 36.98 | ||
 |
Thickness (mm) | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 |
| Section of inertia cm⁴/m | 37.27 | 43.47 | 46.69 | 62.11 | 74.53 | |
| Section of resistance cm³/m | 12.29 | 14.34 | 16.39 | 20.48 | 24.59 | |
 |
Thickness (mm) | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 |
| Section of inertia cm⁴/m | 37.27 | 43.47 | 46.69 | 62.11 | 74.53 | |
| Section of resistance cm³/m | 12.29 | 14.34 | 16.39 | 20.48 | 24.59 |
