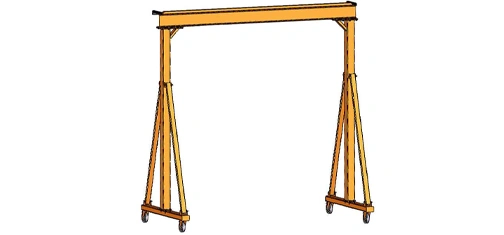

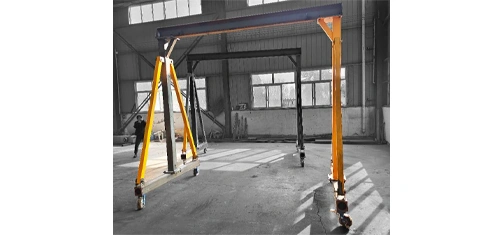

Fixed Height Steel Gantry Cranes
Fixed Height and Span: Designed with a fixed height and span, providing stability for various lifting applications.
Capacities:
1-20 ton
Spans:
1000-10000 mm
Heights:
1000-10000 mm
Machine Highlights
- Fast Assembly 1 and Disassembly: Quick and convenient assembly and disassembly processes, enhancing operational efficiency.
- Universal Wheels with Brake: Equipped with universal wheels featuring a braking system, allowing for easy mobility and secure positioning.
- Mobile Moving: Designed for mobility, these cranes are easily movable to accommodate dynamic operational needs.
- Manual Operation with Brake-Equipped Swivel Casters: The gantry cranes are manually operated and come with swivel casters featuring a braking mechanism for added control.
Specifications
All the attached hoists are superlow-lifting loop chain electric hoists. The lifting height and the inner span may have a little change as your required size and lifting load. Then the data are not final. All the data will be based on our designs.

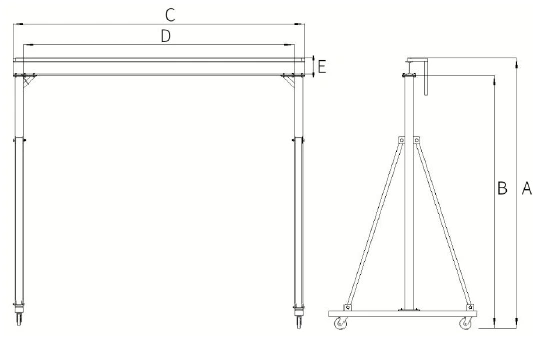

| Tem No. | Raled load (ton) |
Total height (A) (mm) |
Lifting height (B) (mm) |
Outside span (C) (mm) |
Inner span (D) (mm) |
H Height (E) (mm) |
| KNPT1-1 | 1 | 2000 | 1390 | 200 | 1760 | 410 |
| 1 | 3000 | 2390 | 3000 | 2760 | 410 | |
| 1 | 4000 | 3390 | 4000 | 3760 | 410 | |
| 1 | 500 | 4340 | 5000 | 4760 | 410 | |
| 1 | 6000 | 5340 | 500 | 4760 | 410 | |
| 2 | 2000 | 1215 | 2000 | 1720 | 535 | |
| 2 | 3000 | 2215 | 3000 | 2720 | 535 | |
| 2 | 4000 | 3215 | 4000 | 3720 | 535 | |
| 2 | 5000 | 4215 | 4000 | 3720 | 535 | |
| 2 | 5000 | 4215 | 5000 | 4720 | 535 | |
| 2 | 6000 | 5215 | 5000 | 4720 | 535 | |
| 3 | 2000 | 1015 | 2000 | 1660 | 685 | |
| 3 | 3000 | 2015 | 3000 | 2660 | 685 | |
| 3 | 4000 | 3015 | 4000 | 3660 | 685 | |
| 3 | 5000 | 4015 | 4000 | 3660 | 685 | |
| 3 | 5000 | 4015 | 5000 | 4660 | 685 | |
| 3 | 6000 | 5015 | 5000 | 4660 | 685 | |
| 5 | 2000 | 910 | 2000 | 1560 | 740 | |
| 5 | 3000 | 1910 | 3000 | 2560 | 740 | |
| 5 | 4000 | 2910 | 4000 | 3560 | 740 | |
| 5 | 5000 | 3910 | 400 | 3560 | 740 | |
| 5 | 5000 | 3910 | 5000 | 4560 | 740 | |
| 5 | 6000 | 4910 | 5000 | 4560 | 740 | |
| 10 | 200 | 670 | 2000 | 1560 | 880 | |
| 10 | 3000 | 1670 | 3000 | 2560 | 880 | |
| 10 | 4000 | 2670 | 4000 | 3560 | 880 | |
| 10 | 5000 | 3367 | 4000 | 3650 | 880 | |
| 10 | 5000 | 3670 | 5000 | 4560 | 880 | |
| 10 | 6000 | 4670 | 5000 | 4560 | 880 |
Main components

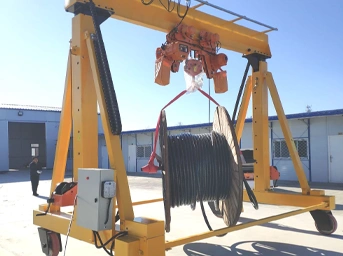

Modular Design for Adaptability

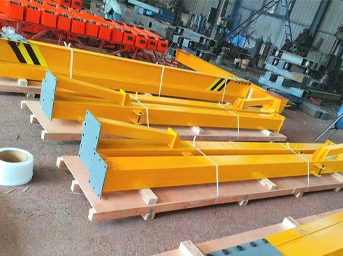

Robust Construction

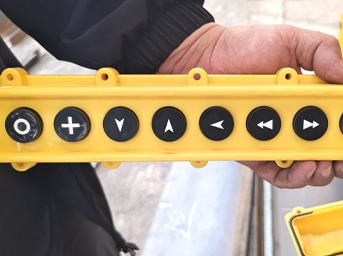

Smart Control Systems

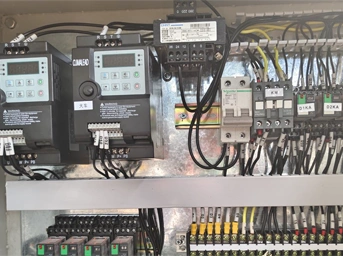

Advanced Automation

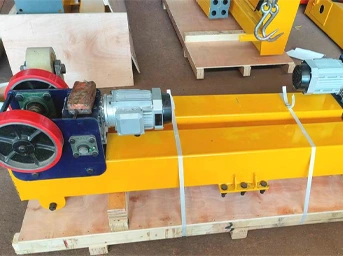

Easy Mobility

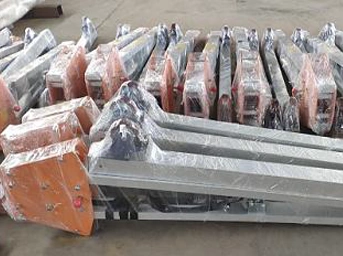

Compact Storage
