R-PU1000
R-PU1000

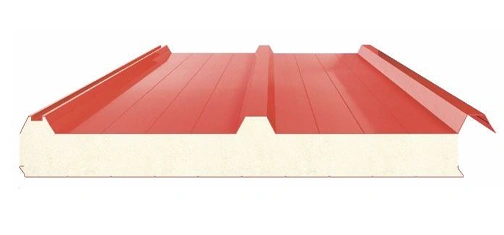

PU Roof Panel
- Maximum Thermal Efficiency — R-value up to 9.1 m²K/W reduces energy costs significantly.
- Double Tongue & Groove Seal — Engineered joint design prevents air and water infiltration.
- Lightweight & Durable — 40 kg/m³ core density balances strength and weight for easy installation.
Specifications
| Panel Thickness | 30, 50, 75, 100, 150, 200mm |
| R-Value | 1.4, 2.3, 3.4, 4.5, 6.7, 9.1m 2k/w |
| Density | 40kg/m3 |

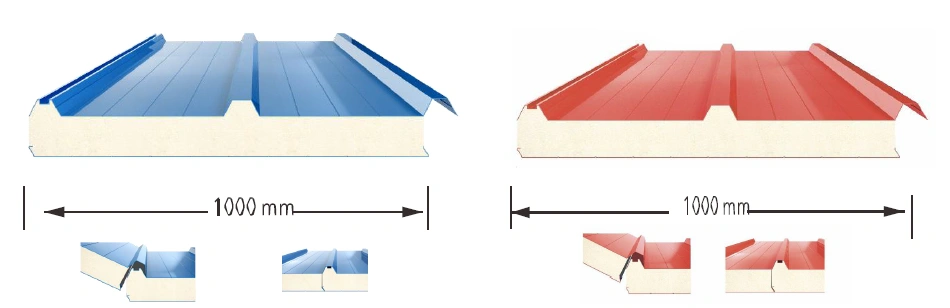

| Panel cover width | 1000mm |
| Length | Max.11.8meters |
| Exterior face | 0.4 to 0.6mm, AZ40 Aluzinc galvanized and PE painting 20um, higher quality steel skin upon request |
| Interior face | 0.4 to 0.6mm, AZ40 Aluzinc galvanized and PE painting 20um, higher quality steel skin upon request |
