W-PU1000
W-PU1000

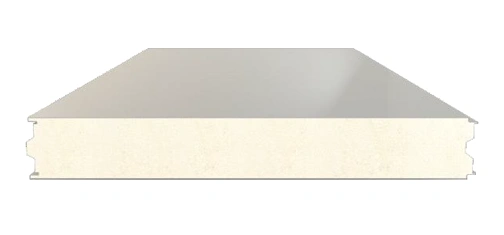

PU Wall Panel
- Thinner Profile, Same R-Value — 50mm PU panel achieves the same R-value as 75mm EPS panel, saving space.

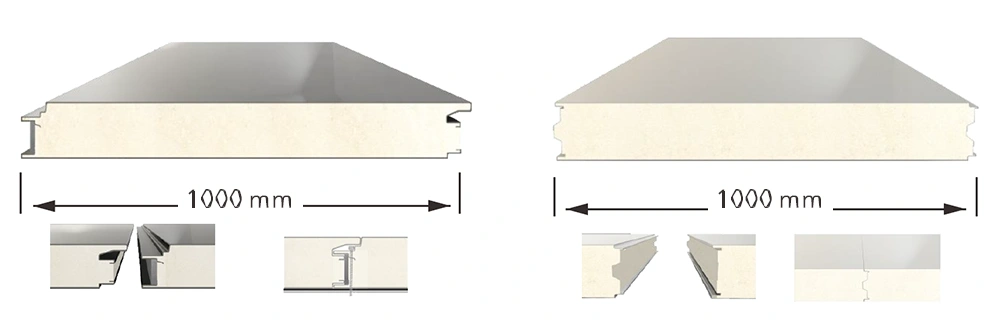

- Double Tongue & Groove — Enhanced joint design ensures airtight, watertight connections.
- High Core Density — 40 kg/m³ PU core provides excellent compressive strength and dimensional stability.
Specifications
| Panel Thickness | 30, 50, 75, 100, 150, 200mm |
| R-Value | 1.4, 2.3, 3.4, 4.5, 6.7, 9.1m2k/w |
| Density | 40kg/m3 |
| Panel cover width | 1000mm |
| Length | Max.11.8meters |
| Exterior face | 0.4 to 0.6mm,AZ40 Aluzinc galvanized and PE paintin 20um, higher quality steel skin upon request |
| Interior face | 0.4 to 0.6mm,AZ40 Aluzinc galvanized and PE painting 20um, higher quality steel skin upon request |
| Color | As per RAL or customer sample |
| Connection | Double tongue and groove |
