Double Girder Gantry Crane

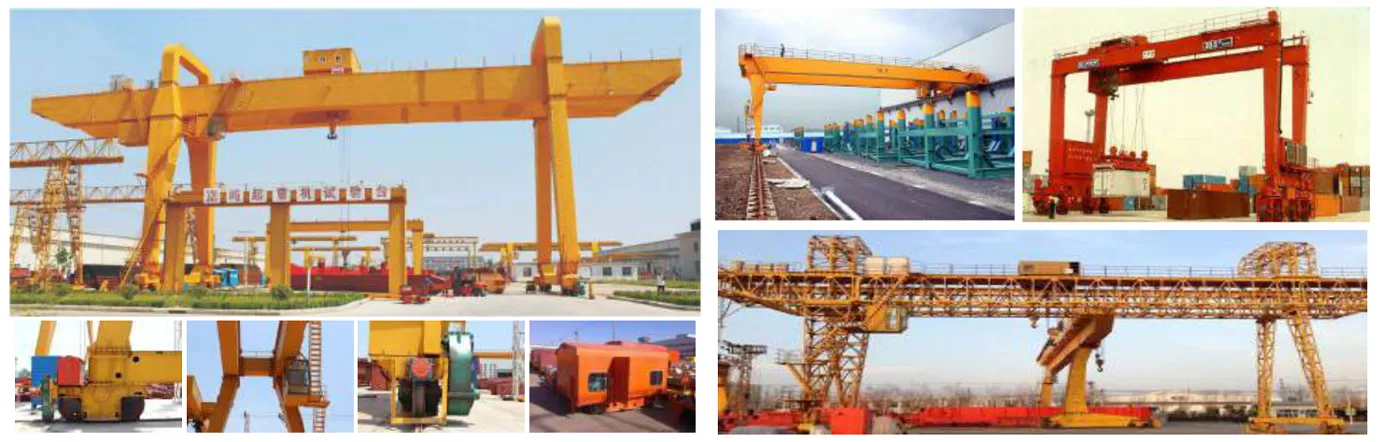

MG(A) type double girder gantry cranes with trolley are widely used in outdoor storage, stockyards, railway warehouses, factories, logistics, and seaport docks, etc. They can also be used in special operations with various hooks.
It consists of four main parts: bridge structure, traveling mechanism, trolley, and electric equipment. The bridge is a welded structure of box-type girder. All movements of the crane are controlled from the cabin. Either rigid shapes of steel (angles or tees) or flexible insulated cable shall be selected to be utilized as runway conductors.
Specifications
| Lifting Capacity | T | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | ||||
| Span | M | 22~35m | |||||||||
| MainHook Lifting | 8.5 | 7.9 | 7.2 | 7.5 | 7.8 | 6 | |||||
| Speed | Aux.HookLifting | m/min | 10.4 | 10.4 | 10.5 | 10.4 | |||||
| TravelingofTrolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | |||||
| Traveling of Crane | 37.6/40 | 38/36 | 38/36 | 40 | 40/38 | 38 | |||||
| OperationaModel | Cabin | ||||||||||
| WorkingDuty | A5 | ||||||||||
| PowerSupply | Three-phaseA.C.380V,50Hz | ||||||||||
| LiftingCapacity | T | 16/3.2 | 20/5.0 | 32/8.0 | 50/10.0 | 75/20.0 | |||||
| Span | M | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | |||||
| Max.LiftingHeight | MainHook | M | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 | ||||
| Auxhook | 10.6-12.6 | 10.6-12.6 | 10.7-12.7 | 11.1-13.1 | 11.1-13.1 | ||||||
| WorkingSystem | A5 | ||||||||||
| Hoisting | Main | 15.3 | 15 | 13.2 | 5.9 | 6.25 | |||||
| Aux | 22 | 19 | 17 | 13.2 | 9.28 | ||||||
| Speed | TolleyTravelling | m/min | 44.7 | 44.7 | 38.6 | 36 | 38.9 | ||||
| CraneTravelling | 30-35 | 34.5-32.9 | 52-53 | 45-38.6 | 38.5-32.6 | ||||||
| Weight | Trolley | t | 7.1 | 8.1 | 11.7 | 16.8 | 29.4 | ||||
| TotalWeight | 92-142 | 105-148 | 92-142 | 111-156 | 189-245 | ||||||
| Max.WheelLoad | 275-369 | 341-435 | 275-369 | 392-483 | 314-361 | ||||||
| RailRecommended | QU70 | QU80 | |||||||||
| PowerSource | 380V50HZ 3 phase | ||||||||||
