Single Girder Gantry Crane

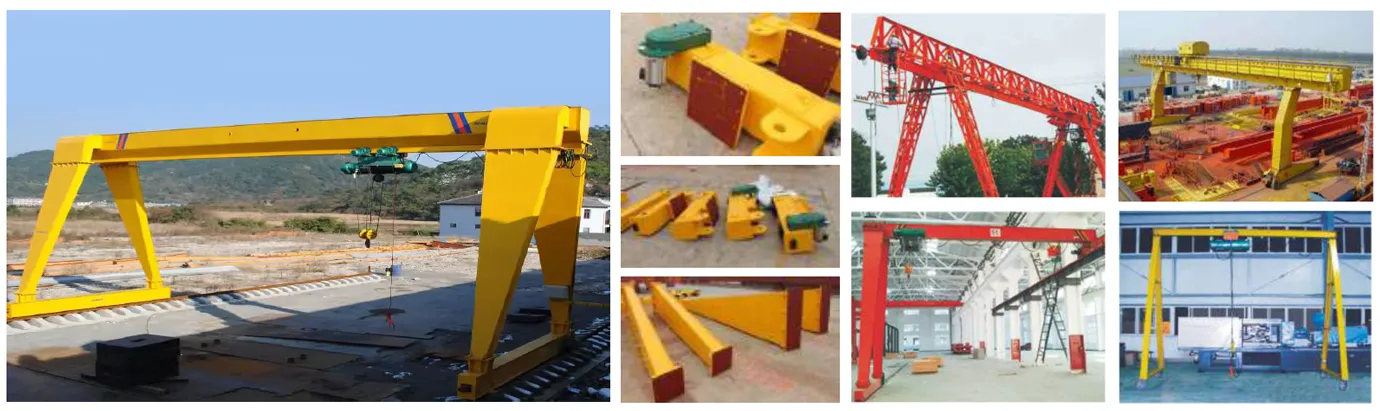

Meeting outdoor and light-duty lifting requirements, a single-girder gantry crane is a good helper! Widely used in warehouses or factory work yards, or sometimes in long workshops, it can save more money than an overhead crane. The girder can be truss type or box type.
The truss type may take up more space than the box type but has better cost performance. A box-type girder can provide more room than trussed type and is more durable quality.
Specifications
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Operational method | Pendant line with push button /cabin | |||||||
| Speed | Lifting | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | ||
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Cranetraveling | Ground | m/min | 20 | 20 | 20 | 20 | 20 | |
| Cabin | m/min | 3,040 | 3,040 | 3,040 | 3,040 | 3,040 | ||
| Lifting | Type/kw | ZD41-4/4.5 | ZD141-4/7.5 | ZD151-4/13 | ZD151-4/13 | ZD1524/18 | ||
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Cranetraveling | Ground | ZDY21-4/0.8×2 | YZR132M1-6/2.2×2 | YZR160M1-6/6.3×2 | YZR160M1-6/6.3×2 | YZR160M1-6/6.3×2 | ||
| ZDY214/1.5×2 | YZR132M2-6/3.7×2 | YZR160M2-6/8.5×2 | YZR160M2-6/8.5×2 | |||||
| Cabin | ZDR22-4/1.5×2 | YZR132M2-6/3.7×2 | YZR160M1-6/6.3×2 | YZR160M2-6/8.5×2 | YZR160M2-6/8.5×2 | |||
| ZDR24-4/2.2×2 | YZR160M1-6/5.5×2 | YZR160L2-6/11×2 | YZR160L2-6/11×2 | |||||
| Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 69 | ||||||
| Working duty | A5 | |||||||
| Power supply | 380V50HZ 3phaseAC | |||||||
| Span | m | 12, 16, 20, 24, 30 | ||||||
