Electric Hoist
The wire rope electric hoist has features of a compact, light, small-sized shape and smooth operation, which offers outstanding ease of use, saves labor, and raises work efficiency. Our hoist can be used not only on overhead rails, but also in construction with many types of electric or manual cranes, such as single-girder cranes, double-girder cranes, cantilever cranes, or gantry cranes, etc. The electric hoist model MD1 with double lifting speeds should be used in cases where the hoist model CD1 can't meet the requirements for fine adjustments during precision operations.
Specifications
Applications
It can travel on a fixed H-beam and can also be used for single-beam overhead cranes, gantry cranes, jib cranes, and overhang cranes to lift cargo.
It can be used in factories, mines, wharves, warehouses, freight yards, and shops, and so on which need lifting equipment for lifting heavy objects. Such as mining companies, railways, docks, and warehouses.
| Model | CD1/MD1 | |||||||||
| Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
| Height (m) | 3-9 | 3-9 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 | |
| Lift speed (m/min) | 8,0.8/8 | 7,0.7/7 | 3.5,0.35/3.5 | 4 | ||||||
| Travel speed (m/min) | 20 | 20/30 | 20 | 20 | ||||||
| Wire Rope | Dia. (mm) | 3.6 | 4.8 | 7.7 | 11 | 11 | 15 | 15 | 17.5 | 24 |
| Structure | 6x19 | 6x37+1 | ||||||||
| Travel rail | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | 45b-63c | 56b-63c | |
| Lift motor | Power (kW) | 0.4 | 0.8,0.2/0.8 | 1.5,0.2/1.5 | 3.0,0.4/3.0 | 4.5,0.4/4.5 | 7.5,0.8/7.5 | 13,1.5/13 | 13,1.5/13 | 18.5 |
| Rotation | 1380r/min | |||||||||
| Travelmotor | Power (kW) | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | ||
| Rotation | 1400r/min | 1380r/min | ||||||||
| Joint number (times) | 120 | |||||||||
| Work duty | Middle FC=25% | |||||||||
| Power | 380V,50Hz, 3-Phase | |||||||||
| Weight (kg) 10%(+1) |
CD1 | 44-46 | 121-130 | 137-220 | 221-353 | 281-450 | 440-726 | 1050-1450 | 1130-1286 | // |
| MD1 | // | 138-147 | 164247 | 256-388 | 310-480 | 530-780 | 1100-1500 | 1220-1376 | // | |
Electric hoist list

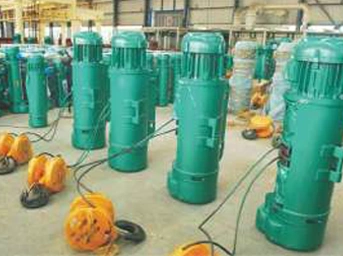

1. CD1 Model Single Speed
Wire Rope Electric Hoist

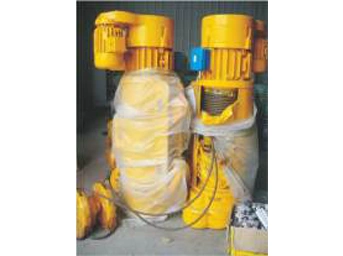

2. MD1 Model Dual Speed Wire
Rope Electric Hoist

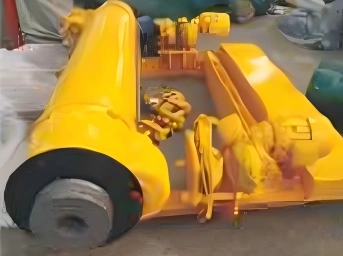

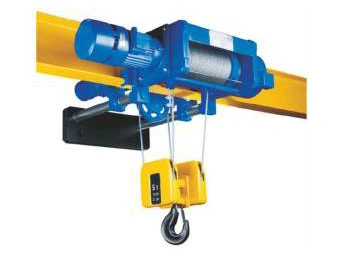

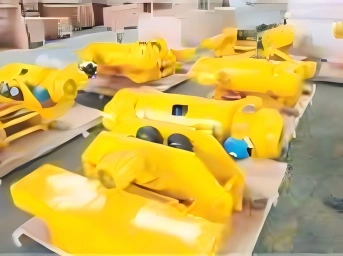

3. Low Headroom Wire Rope
Electric Hoist

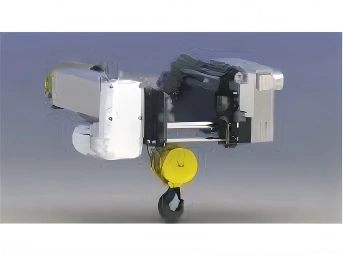

4. Euro Type Wire Rope Electric
Hoist

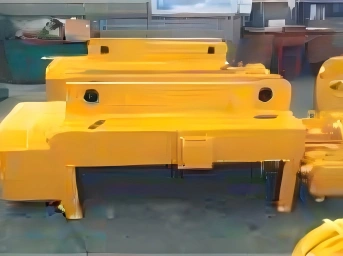

5. Explosion-Type Wire Rope
Electric Hoist

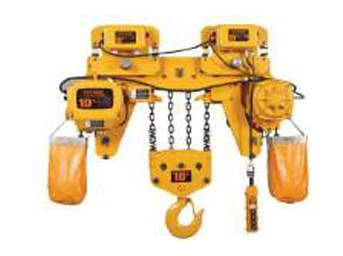

6. Electric Chain Hoist
