JiB Crane
The Jib Crane is a type of crane that uses a mounted arm to lift, move, and lower material. The arm, mounted either perpendicular to or at an acute angle upward from a column(pillar), may rotate along its central axis through a limited arc or a full circle. A column-mounted jib crane is often used in industrial settings, like warehouses, to load and unload material.

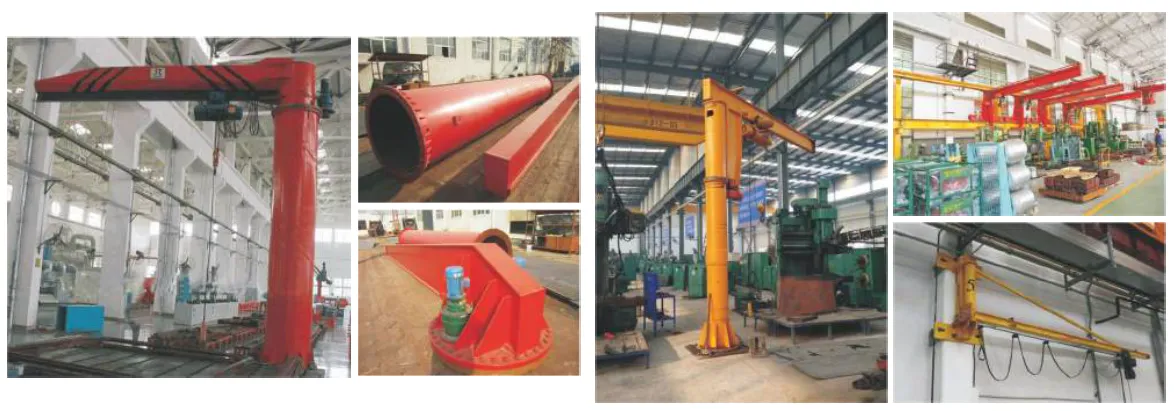

Machine Highlights
- Free Standing Column Jib Crane: This kind of crane is developed in recent years, small and medium-size lifting equipment, safe, reliable, high eficiency, energy-saving, time-saving and labor-saving and flexible feather, in the three-dimensional space and can operate freely, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipment unique advantages, widely used in workshops, warehouses, terminals and other fixed location.
- Wall Mounted Jib Crane: These mount easily to any substantial structural steel building column, at any desired height. The crane has a structural steel finish, in highly visible yellow enamel.
- Wall Travelling Jib Crane: These are useful where overhead cranes are not practical or feasible. They offer 360-degree floor coverage, allowing unrestricted placement of machinery and equipment.
Specifications
| Lifting capacity (ton) | 0.5, 1, 2, 3 | 5 | |||||
| Span(m) | 3-16 | 3-16 | |||||
| Crane Travelling Device | Travelling speed(m/min) | 20 | 30 | 20 | 30 | ||
| Reducer ratio | 28.2 | 20 | 30.4 | 21.6 | |||
| Motor | ZDY21-4, 2x0.4Kw, 1380r/min |
ZDY112-4, 2x0.8kw, 1380r/min |
|||||
| Lifting device (Electric hoist) And hoist travelling device |
Electric Hoist model | CD1/MD1 | |||||
| Lifting speed(m/min) | 8,0.8/8 | ||||||
| Lifting height(m) | 6,9,12,18,24,30 | ||||||
| Travelling speed(m/min) | 20; (30) | ||||||
| Motor | Taper Squirrel-cage type | ||||||
| Work duty | Medium grade, JC=25% | ||||||
| Power supply | 380V,50Hz,3-Phase | ||||||
| Wheel Diameter | 130 mm | 150 mm | |||||
| Rail Surface width | 37-70 mm | ||||||
