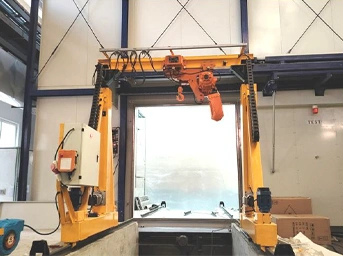

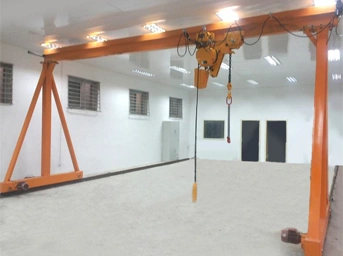

Rail Mounted Electric Gantry Crane

Capacities:

1-10 ton

Spans:

1000-6000 mm

Heights:

1000-6000 mm

Talk to an Expert

Specifications

Item No.	Rated load (ton)	Total height (mm)	Lifting height (mm)	Outside span (mm)	Inner span (mm)	H Height (mm)
KNPT-4	1	2000	1390	2000	1760	410
	1	3000	2390	3000	2760	410
	1	4000	3390	4000	3760	410
	1	5000	4390	4000	3760	410
	1	5000	4340	5000	4760	410
	1	6000	5340	5000	4760	410
	2	2000	1215	2000	1720	535
	2	3000	2215	3000	2720	535
	2	4000	3215	4000	3720	535
	2	5000	4215	4000	3720	535
	2	5000	4215	5000	4720	535
	2	6000	5215	5000	4720	535
	3	2000	1015	2000	1660	685
	3	3000	2015	3000	2660	685
	3	4000	3015	4000	3660	685
	3	5000	4015	4000	3660	685
	3	5000	4015	5000	4660	685
	3	6000	5015	5000	4660	685
	5	2000	910	2000	1560	740
	5	3000	1910	3000	2560	740
	5	4000	2910	4000	3560	740
	5	5000	3910	4000	3560	740
	5	5000	3910	5000	4560	740
	5	6000	4910	5000	4560	740
	7.5	2000	700	2000	1560	900
	7.5	3000	1700	3000	2560	900
	7.5	4000	2700	4000	3560	900
	7.5	5000	3700	4000	3560	900
	7.5	5000	3700	5000	4560	900
	7.5	6000	4700	5000	4560	900
	10	2000	670	2000	1560	880
	10	3000	1670	3000	2560	880
	10	4000	2670	4000	3560	880
	10	5000	3670	4000	3560	880
	10	5000	3670	5000	4560	880
	10	6000	4670	5000	4560	880
