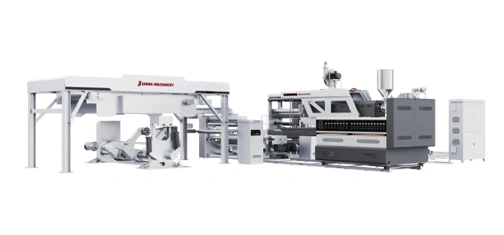

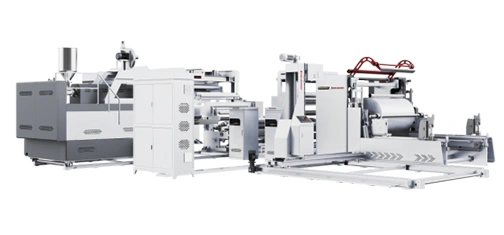

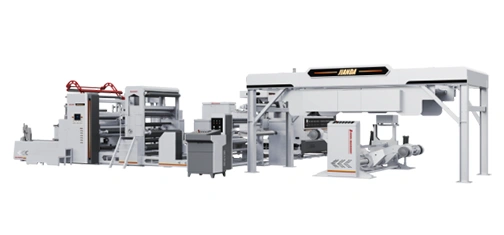

GIII Full Automatic Single Side Extrusion Lamination Machine
This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate paper, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials. Mainly designed for High GSM paper coating.
Machine Highlights
- Centralized control via PLC and HMI; integrated mechanical, electrical, and pneumatic design.
- High-precision, original imported die head (edge-trim-free).
- Automatic die head lifting mechanism.
- High-speed, high-efficiency mixing unit.
- Rapid hydraulic screen changer and automatic feeding system.
- Can be equipped with a dry lamination system to provide dry lamination functionality.
- Compatible with single, twin, or multiple extruders and multi-layer co-extrusion configurations.
Specifications
|
Model |
JDLM1300/110C |
JDLM1700/110C |
|
Coating Width |
600-1200mm |
900-1600mm |
|
Suitable Base Material |
High GSM Paper (65~450gram/㎡) |
|
|
Design Line Speed Speed |
270 m/min Coating Speed: 180-240m/min, Precise Speed is based on the material and process technology. |
|
|
Main Motor |
55 kw |
|
|
Total Power |
≈160kw |
≈190kw |
|
Unwinder Diameter |
≤Φ1500 mm |
|
|
Winding Diameter |
≤Φ1600 mm |
|
|
Power Supply |
380/3/4/50 (Volt/Ph/Line/Hz) |
|
|
Note: as the products are developing day by day, the technical data are subject to change without notice. Different size model can be custom-made. |
||
FAQ
A company producing snack wrappers wants to enhance grease resistance. How can extrusion coating help?
Extrusion coating creates a dense layer that significantly enhances oil resistance and strength, making it a common lamination method for snack packaging.
A disposable plate manufacturer is evaluating extrusion coatings for moisture protection. What benefits can be expected?
Film coating effectively prevents moisture absorption, allowing the paper tray to remain rigid and resistant to softening during use.

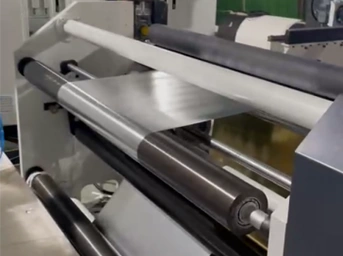

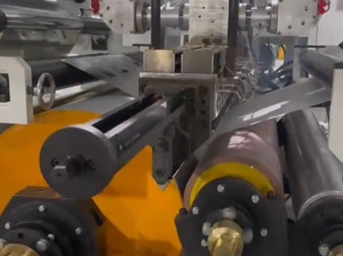

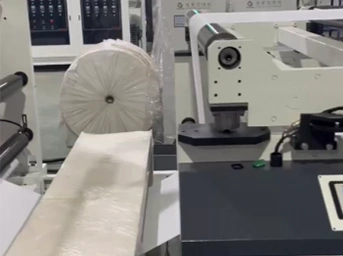

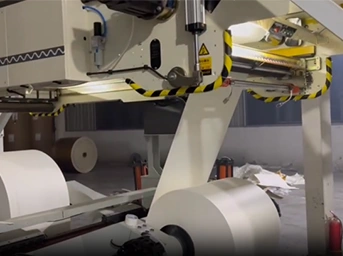

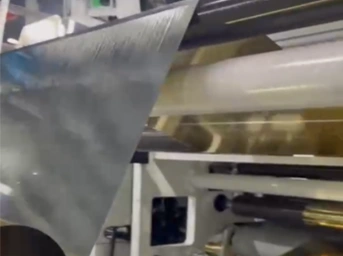

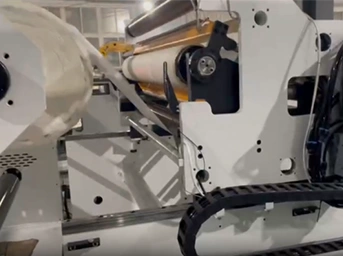

Main components
