GIII Full Automatic Tandem Extrusion Lamination Machine
JDLM1300/110X2C, 1700/110X2C

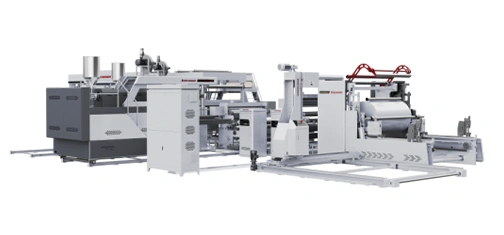

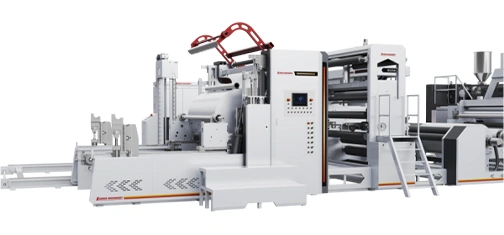

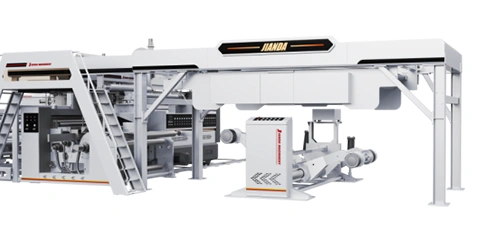

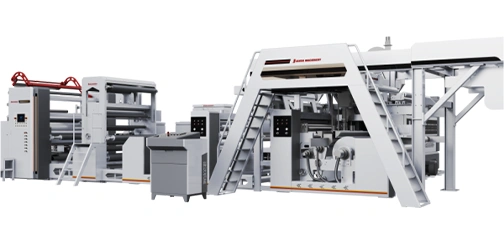

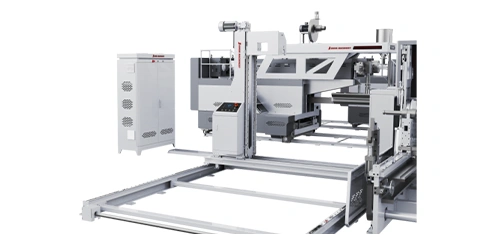

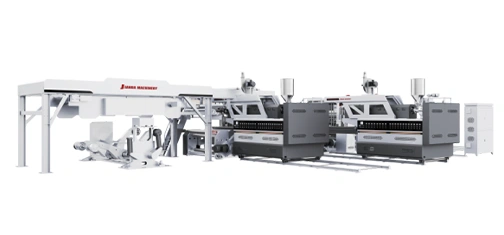

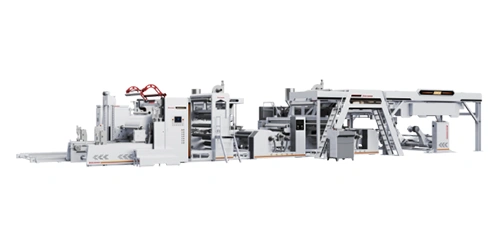

GIII Full Automatic Tandem Extrusion Lamination Machine
This production line is a high-speed extrusion lamination line with a speed up to 250m/min. It is suitable for the production of LDPE, PP, and other coating-grade materials, to laminate paper, non-woven fabric, and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials. Mainly designed for high-GSM paper coating.
Coating Width:
600-1200mm, 900-1600mm
Suitable Base Material:
High GSM Paper (65-450 gram/㎡)
Design Line Speed:
270 m/min
Machine Highlights
- Centralized control via PLC and HMI; integrated mechanical, electrical, and pneumatic design.
- High-precision, original imported die head (edge-trim-free).
- Automatic die head lifting mechanism.
- High-speed, high-efficiency mixing unit.
- Rapid hydraulic screen changer and automatic feeding system.
- Can be equipped with a dry lamination system to provide dry lamination functionality.
- Compatible with single, twin, or multiple extruders and multi-layer co-extrusion configurations.
Specifications
| Model | JDLM1300/110X2C | JDLM1700/110X2C |
| Coating Width | 600-1200mm | 900 - 1600mm |
| Suitable Base Material | High GSM Paper（65-450 gram/㎡） | |
| Design Line Speed Speed | 270 m/min Coating Speed: 180 - 240m/min, Precise Speed is based on the material and process technology |
|
| Main Motor | 55 kw*2 | |
| Total Power | ≈ 290kw | ≈ 320kw |
| Unwinder Diameter | ≤ Φ1500 mm | |
| Winding Diameter | ≤ Φ1600 mm | |
| Power Supply | 380/3/4/50 (Volt/Ph/Line/Hz) | |
Note: as the products are developing day by day, the technical data are subject to change without notice .Different size model can be custom-made.
Workflow
 |
 |
 |
| Unwinding | Web Guiding | Corona Treatment |
 |
 |
 |
| Secondary Unwinding | Lamination | Edge Trimming |
 |
||
| Winding |
Main components

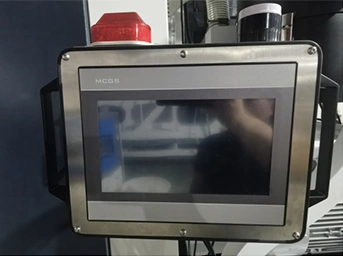

PLC Control Panel

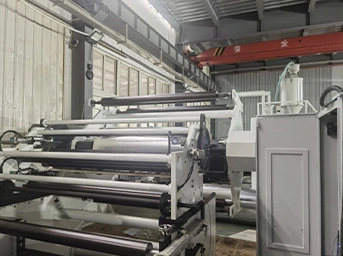

Guide Roller

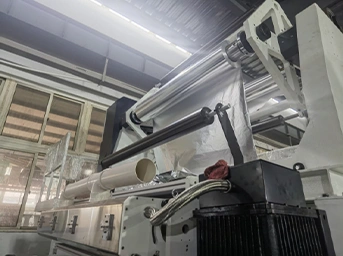

Secondary Unwinding Unit

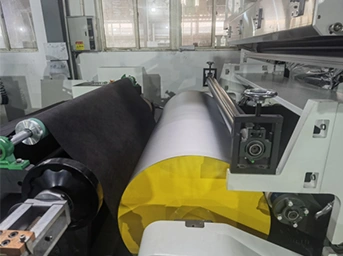

Lamination

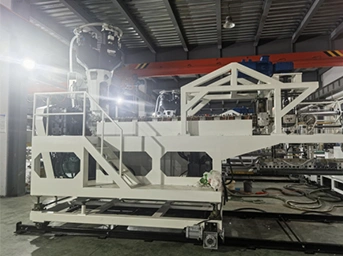

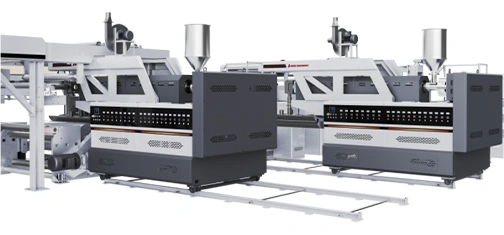

Extruder

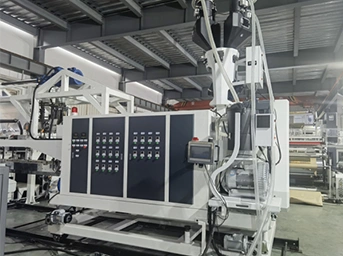

Extruder Carriage

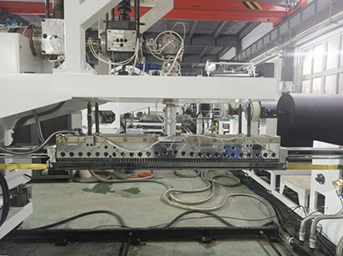

Die Head

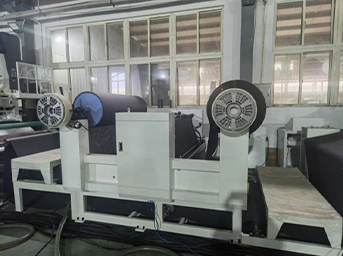

Dual-Station Unwinding

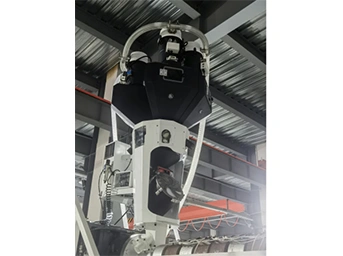

Automatic Metered Feeding System

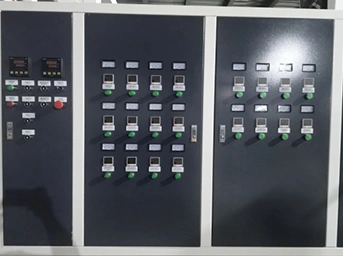

Temperature Control Panel

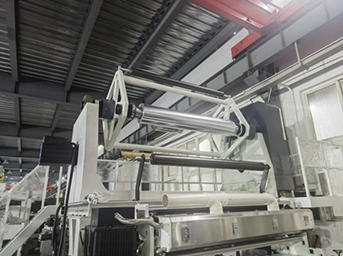

Center-Driven Secondary Unwinding

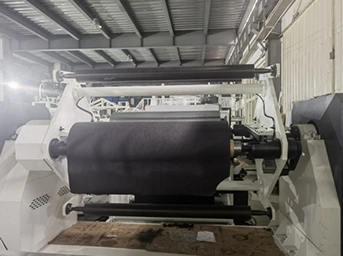

Center-Driven Winding
