Crawler Articulated AWP
TGZLQ
TGZLQ

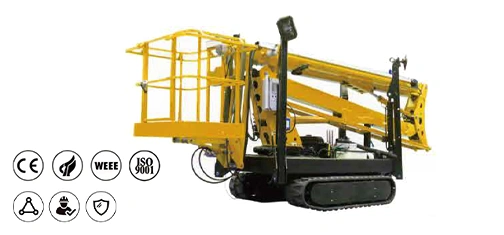

Crawler Articulated AWP
Steel track chassis, can turn in situ, suitable for various complex road surfaces.
Max Working Height:
12 m
Operating Radius:
2.9 m
Load Capacity:
160 kg

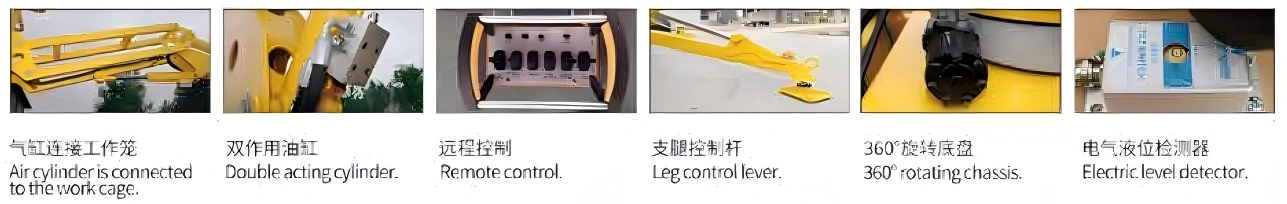

Machine Highlights
- Boom expansion, amplitude variation, rotation, and platform movement can be carried out simultaneously.
- Working bucket with automatic leveling function; the relative horizontal plane tilt Angle is not more than 1.5°.
- The traveling pump is a closed-piston electric proportional variable pump that can achieve stepless speed regulation.
- Equipped with ground console and platform console, can use reversing switch to change the control mode.
- PLC and CAN bus control mode, modular structure control is stronger.
- Foot switch, only step the foot switch to operate.
- The engine intake system employs a closed, two-stage filtration system to adapt to dusty conditions.
- When the equipment is moving and turning, it will emit a sound and light alarm.

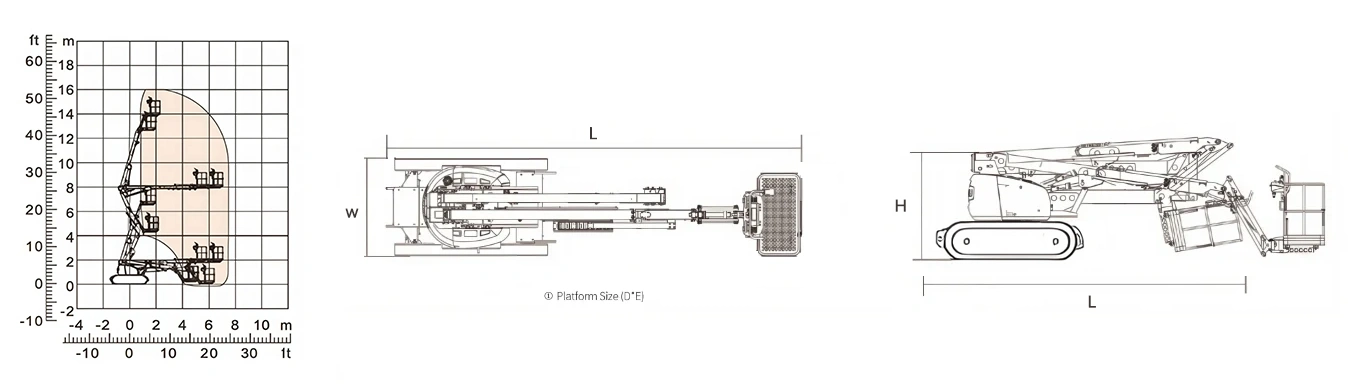

Specifications
| Model | Max Working Height (m) | Lifting Height (m) | Load Capacity (kg) | Operating Radius (m) | Overall Dimension (mm) | Weight (kg) | Running Speed (km/h) |
| TGZLQ8 | 8 | 6 | 160 | 2.9 | 2530*1390*1630 | 1085 | 0~4.0 |
| TGZLQ10 | 10 | 8 | 160 | 2.9 | 2900*1390*1860 | 1290 | 0~5.0 |
| TGZLQ12 | 12 | 10 | 160 | 2.9 | 2950*1390*1980 | 1500 | 0-5.0 |
