Self-propelled Telescopic Boom Lift
Boom expansion, amplitude variation, rotation, and platform movement can be carried out simultaneously.
Lifting Height:
32 m
Platform Size:
2.44*0.91 m
Load Capacity:
480 kg

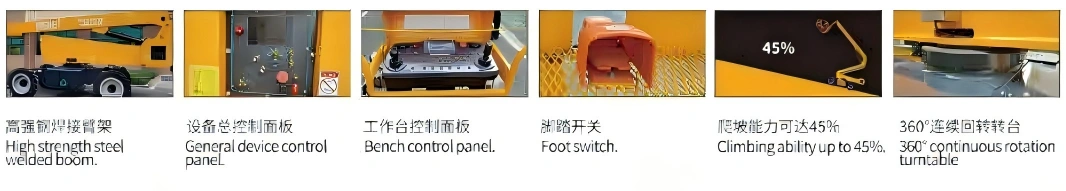

Machine Highlights
- Working bucket with automatic leveling function,the relative horizontal plane tilt Angle is not more than 1.5°.
- The traveling pump is a closed piston electric proportional variable pump, which can carry out stepless speed regulation.
- Equipped with ground console and platform console, can use reversing switch to change the control mode.
- PLC and CAN bus control mode, modular structure control is durable.
- Equipped with 12V auxiliary power device,which can make the work bucket safely down to the ground when the engine or the main oil pump failure.
- Foot switch, only step the foot switch to operate.
- The engine intake system adopts closed two-stage filtration to adapt to dusty environment.
- When the equipment is walking and turning, it wil emit sound and tight alarm.

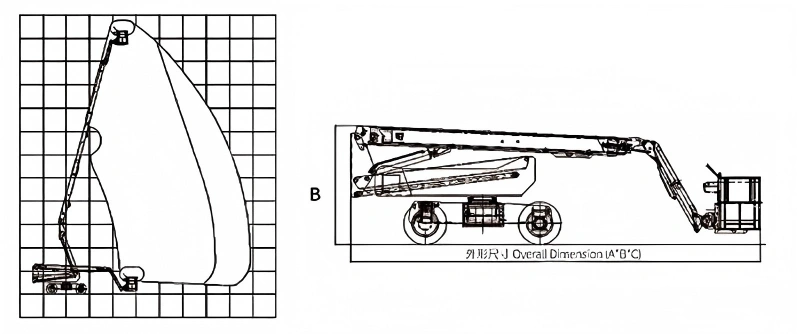

Specifications
| Model | Lifting Height (m) | Platform Size (mm) | Overall Dimension (mm) | Load Capacity (kg) |
| TGZZ14E | 14 | 1830*760 | 2600*2280*8550 | 300 |
| TGZZ18E | 18 | 2440*910 | 2600*2380*900 | 300 |
| TGZZ20E | 19.6 | 2440*910 | 2600*2490*10600 | 300 |
| TGZZ22E | 21.5 | 2440*910 | 2590*2490*9100 | 480 |
| TGZZ27E | 26.6 | 2440*910 | 2830*2490*10760 | 480 |
| TGZZ28E | 28 | 2440*910 | 2870*2580*12790 | 480 |
| TGZZ32E | 32 | 2440*910 | 3030*2580*12600 | 480 |
