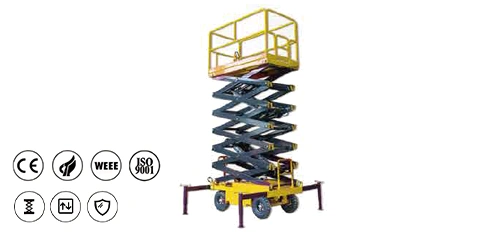

Trailer Mobile Scissor Lift Platform
Fully formed manganese steel hinge boom with uniform thickness.
Standard cold-formed groove guide rail, nylon slide as the guide wheel, large contact surface, stable lifting, minimal shaking.
Detachable guardrail for easy access to places with height restrictions.
Lifting Height:
18 m
Platform Size:
3.06*1.62 m
Load Capacity:
300 kg

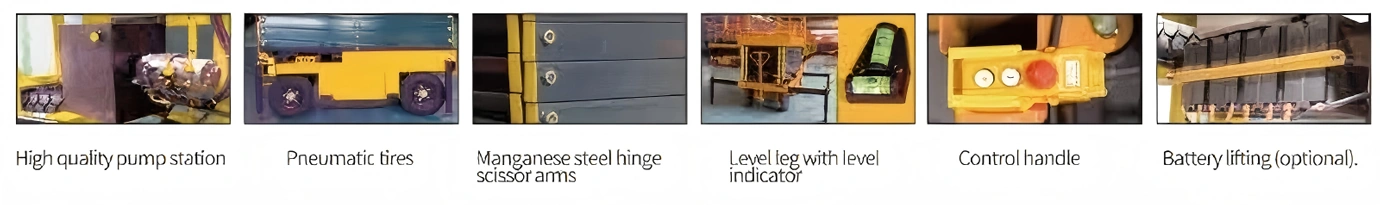

Machine Highlights
- Extension/retractable countertop with foot lock.
- Overload protection prevents overload damage to the hydraulic system.
- Suction cup leveling legs with a level indicator provide smooth support for the platform.
- The platform and the bottom of the equipment have an emergency stop button and a lifting operation button.
- Three-level safety protection: pipeline explosion-proof valve,anti-clamp and anti-fall, emergency drop button, safe and reliable.
- Intelligent integrated electrical control system, standard modular design, fast response speed.

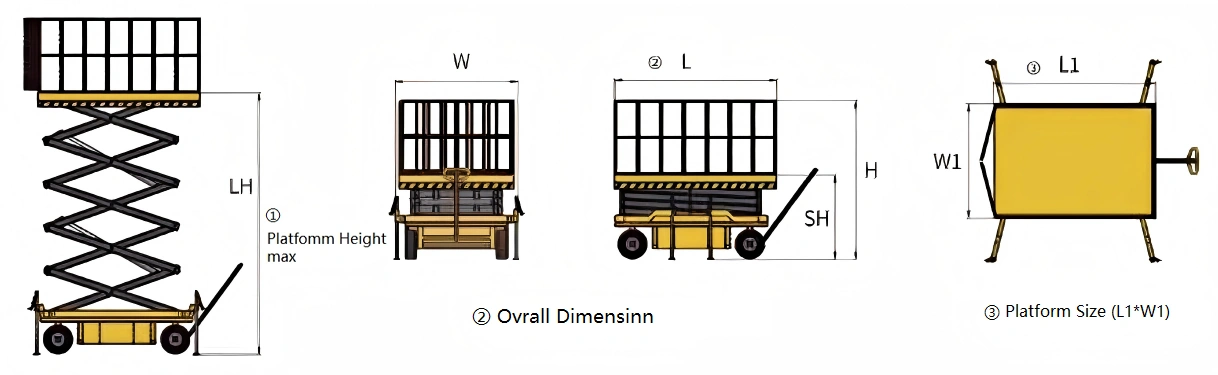

Specifications
| Model | Platform Size L1*W1 (mm) | Lifting Height (m) | Load Capacity (kg) | Weight (kg) | Overall Dimension (mm) |
| XB-0.5-4 | 2010*830 | 4 | 500 | 670 | 2016*1000*1150 |
| XB-0.5-8 | 2010*830 | 8 | 500 | 850 | 2016*1000*1350 |
| XB-0.5-10 | 2010*1130 | 10 | 500 | 1280 | 2016*1290*1540 |
| XB-0.5-12 | 2462*1210 | 12 | 500 | 2100 | 2465*1360*1780 |
| XB-0.5-14 | 2845*1420 | 14 | 500 | 2580 | 2845*1620*1895 |
| XB-0.3-18 | 3060*1620 | 18 | 300 | 3950 | 3060*1800*2120 |
| XB-1.0-12 | 2462*1210 | 12 | 1000 | 2400 | 2465*1360*1780 |
| XB-1.0-14 | 2642*1420 | 14 | 1000 | 2800 | 2845*1620*1895 |
Hot Products

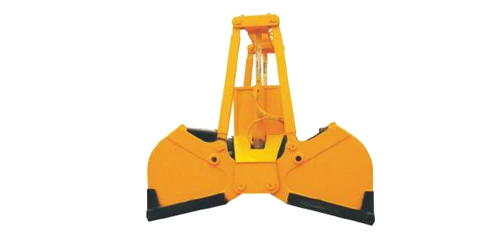

Grab Bucket
