Electric Traction Mobile Scissor Lift Platform
XB
XB

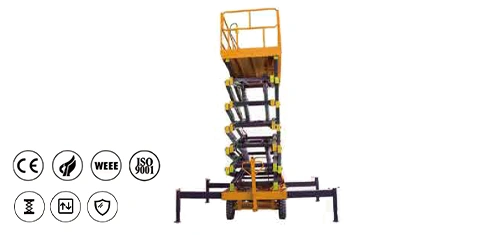

Electric Traction Mobile Scissor Lift Platform
Electric driving system; one person can move it easily.
H-beam wide-base frame enhances stability.
Detachable guardrail for easy access to places with height restrictions.
Lifting Height:
18 m
Platform Size:
3.06*1.62 m
Load Capacity:
300 kg

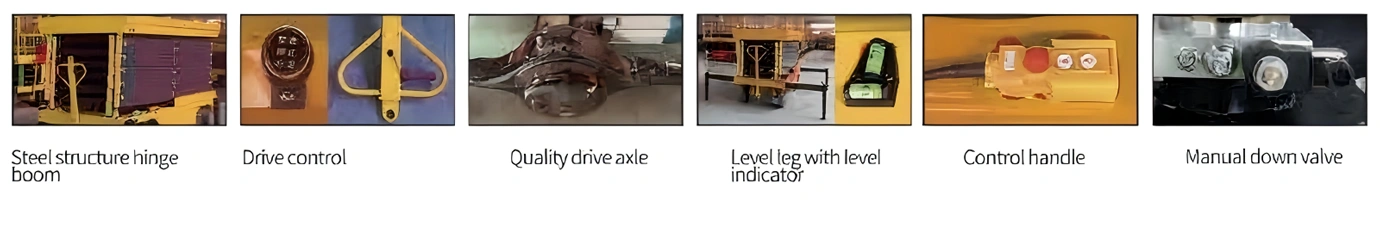

Machine Highlights
- Multifunctional handle; can be operated with one hand.
- Rainproof control box, suitable for various weather conditions.
- Equipped with an overload pressure-limiting valve; the overweight will stop rising and can only descend.
- Suction cup leveling legs with a level indicator to provide smooth support for the platform.
- The operation platform and the bottom of the equipment have an emergency stop button and a lifting operation button.
- Three-level security protection: unloading restrictor valve, anti-clamp, anti-fall, emergency fall, safe and reliable.
- Intelligent integrated electrical control system, standard modular design, fast response speed.

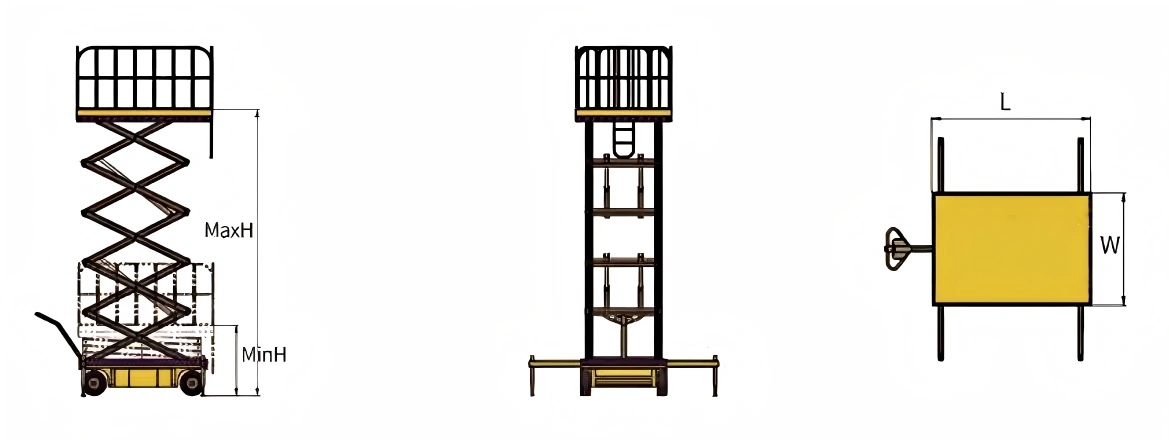

Specifications
| Model | Platform Size L1*W1 (mm) | Lifting Height (m) | Load Capacity (kg) | Weight (kg) | Overall Dimension (mm) |
| XB-0.5-4 | 2010*830 | 4 | 500 | 670 | 2016*1000*1150 |
| XB-0.5-8 | 2010*830 | 8 | 500 | 850 | 2016*1000*1350 |
| XB-0.5-10 | 2010*1130 | 10 | 500 | 1280 | 2016*1290*1540 |
| XB-0.5-12 | 2462*1210 | 12 | 500 | 2100 | 2465*1360*1780 |
| XB-0.5-14 | 2845*1420 | 14 | 500 | 2580 | 2845*1620*1895 |
| XB-0.3-18 | 3060*1620 | 18 | 300 | 3950 | 3060*1800*2120 |
| XB-1.0-12 | 2462*1210 | 12 | 1000 | 2400 | 2465*1360*1780 |
| XB-1.0-14 | 2642*1420 | 14 | 1000 | 2800 | 2845*1620*1895 |
