EPE Foam Lamination Machine
JDLM600/60, 1300/80, 1700/90
JDLM600/60, JDLM1300/80, JDLM1700/90
EPE Foam Lamination Machine
Finished Film Width:
900-1600 mm
Lamination Thickness:
0.01-0.10 mm
Design Line Speed:
40 m/min
Specifications
|
Model |
JDLM600/60 |
JDLM1300/80 |
JDLM1700/90 |
|
Screw Dia. |
Φ60 mm |
Φ80 mm |
Φ90 mm |
|
Finished film width |
200-400 mm |
600-1200 mm |
900-1600 mm |
|
Lamination Thickness |
0.01-0.10 mm |
||
|
Main Unwinder Material |
EPE, Fabric, Paper |
||
|
2nd Unwinder Material |
Film. Foil |
||
|
Usable Resin (Coating Grade) |
LDPE, PP |
||
|
Design Line Speed |
40 m/min |
40 m/min |
40 m/min |
|
Max. Extrusion Capacity |
60kg/h |
120kg/h |
140kg/h |
|
Main Motor Power |
11 kw |
22.5 kw |
30 kw |
|
Total power |
40kw |
100kw |
130kw |
|
Dia. of Main Unwinding |
≤φ1200 mm |
||
|
Dia. of 2nd Unwinding |
≤φ500 mm |
||
|
Dia. of Winding |
≤φ1200 mm |
||
|
Power Supply |
380/3/4/50 (Volt/Ph/Line/Hz) |
||

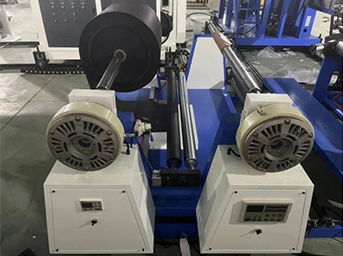

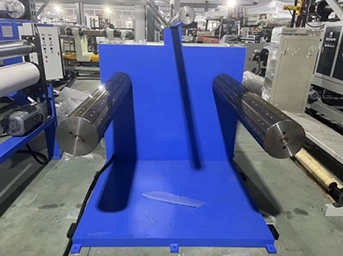

Main components
