FM-CS1020-1450
FM-CS1020-1450
Flexographic Printing Press (Petal Type)
This printing press is specifically designed for the eco-friendly printing and packaging industry. It is widely used for printing and processing products such as paper bags, cartons, paper cups, pre-printed corrugated boxes, courier bags, and milk cartons across sectors including food and healthcare. It is compatible with a wide range of materials, including kraft paper, cardstock, coated paper, multi-layer paper, multi-layer composite paper, non-woven fabrics, and paperboard.
Max. Printing Width:
1450 mm
Max. Unwinder Diameter:
1524 mm
Max. Speed:
240 m/min
Machine Highlights
- The equipment features a petal-style quick-change plate system, enabling efficient and convenient replacement of plate cylinders and anilox rollers; the printing unit is designed for ''foolproof'' operation, ensuring precise impression positioning in a single step.
- A full-servo shaftless drive system, combined with automatic pre-registration and pre-color-matching functions, maintains stable registration during speed changes, effectively reducing setup time and material waste while enhancing production efficiency and product consistency.
Specifications
| Item | 39.5" (1020) | 47.5" (1220) | 51" (1320) | 53" (1350) | 57" (1450) |
| Specification | 39.5"(1020) | 47.5"(1220) | 51"(1320) | 53"(1350) | 57"(1450) |
| Max. Web Width | 1020 mm | 1220 mm | 1320 mm | 1370 mm | 1470 mm |
| Max. Printing Width | 1000 mm | 1200 mm | 1300 mm | 1350 mm | 1450 mm |
| Printing Repeat | 320-1200 mm | 320-1200 mm | 320-1200 mm | 360-1200 mm | 360-1200 mm |
| Max. Unwinder Diameter | 1524 mm | 1524 mm | 1524 mm | 1524 mm | 1524 mm |
| Max. Rewinder Diameter | 1524 mm | 1524 mm | 1524 mm | 1524 mm | 1524 mm |
| Gearing | 1/8 cp | 1/8 cp | 1/8 cp | 1/8 cp | 1/8 cp |
| Max. Speed | 240 m/min | 240 m/min | 240 m/min | 240 m/min | 240 m/min |
| Diameter of Web Roller | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Drying Mode | Hot Air / Infrared / UV | ||||
| Substrate | 80–350g art paper, cardstock, kraft paper, coated paper, PE-coated paper, PE-laminated paper | ||||
Note: As the products are developing day by day, the technical data are subject to change without notice.
Main components
Infrared (IR) Drying + UV drying
Sleeve-Based Quick Plate Change
Cold Foil Unit

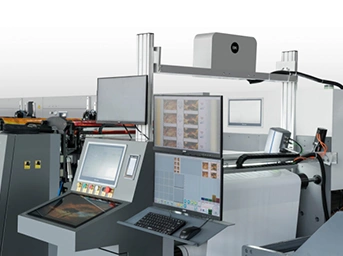

Full Inspection System
