JDLM1300/100, 1700/100, 2400/110
JDLM1300/100, JDLM1700/100, JDLM2400/110
Insulation Material Lamination Machine
Finished Film Width:
1300-2200mm
Lamination Thickness:
0.01-0.10 mm
Working Line Speed:
80~180 m/min
Specifications
|
Model |
JDLM1300/100 |
JDLM1700/100 |
JDLM2400/110 |
|
Screw Dia. |
Φ100 mm*2 |
Φ100 mm*2 |
Φ110 mm*2 |
|
Finished film width |
600-1200mm |
900-1600mm |
1300-2200mm |
|
Lamination Thickness |
0.01-0.10 mm |
||
|
Main Unwinder Material |
Paper, Fabric |
||
|
2nd Unwinder Material |
Film. Foil |
||
|
Usable Resin (Coating Grade) |
LDPE, PP |
||
|
Design Line Speed |
210 m/min |
||
|
Working Line Speed |
80~180 m/min according to material and process art |
||
|
Max. Extrusion Capacity |
200kg/h Each Ply |
200kg/h Each Ply |
280kg/h Each Ply |
|
Main Motor Power |
37kw |
37kw |
55 kw |
|
Total power |
240kw |
260kw |
380kw |
|
Dia. of Main Unwinding |
≤φ1200 mm |
||
|
Dia. of 2nd Unwinding |
≤φ500 mm (Optional) |
||
|
Dia. of Winding |
≤φ1300 mm |
||
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
||

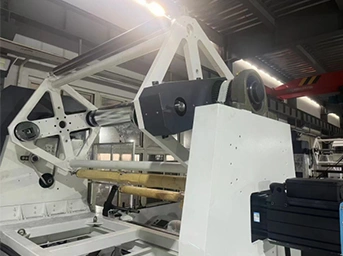

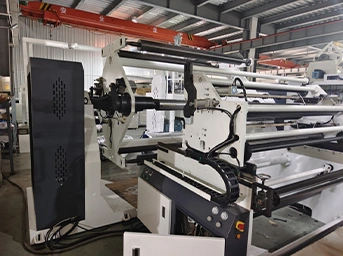

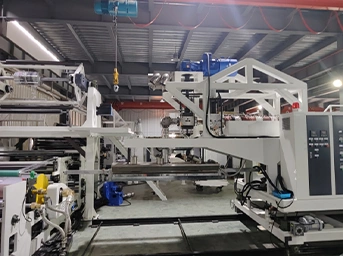

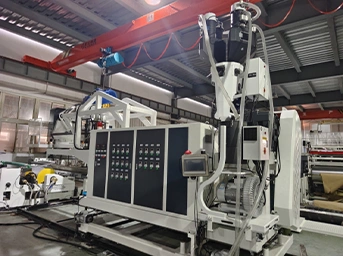

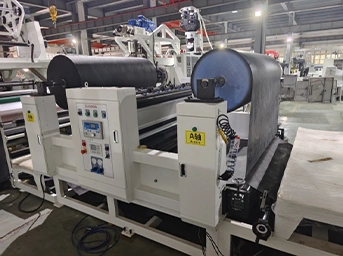

Main components
