G3-Turret Tandem Lamination Machine
JDLM1300/110*2, 1700/110*2, 2400/120*2
JDLM1300/110*2, JDLM1700/110*2, JDLM2400/120*2

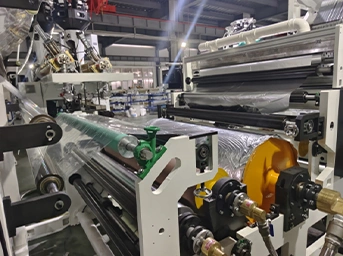

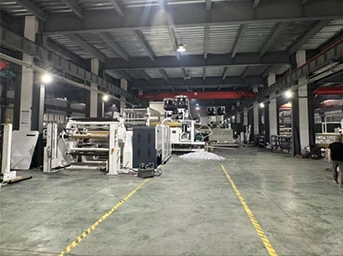

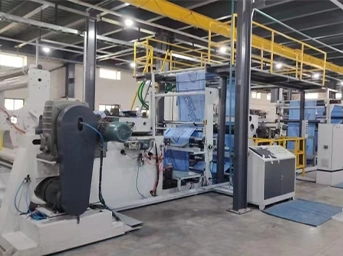

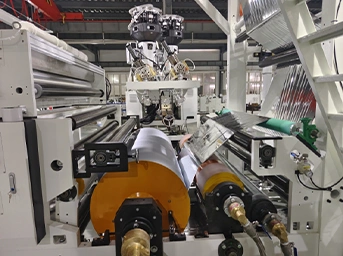

G3-Turret Tandem Lamination Machine
Finished Film Width:
1300-2200 mm
Lamination Thickness:
0.01-0.10 mm
Working Line Speed:
120~300 m/min
Specifications
|
Model |
JDLM1300/110*2 |
JDLM1700/110*2 |
JDLM2400/120*2 |
|
Screw Dia. |
Φ110 mm*2 |
Φ110 mm*2 |
Φ120 mm*2 |
|
Finished film width |
600-1200 mm |
900-1600 mm |
1300-2200 mm |
|
Lamination Thickness |
0.01-0.10 mm |
||
|
Main Unwinder Material |
Paper, Fabric |
||
|
2nd Unwinder Material |
Film. Foil |
||
|
Usable Resin (Coating Grade) |
LDPE, PP |
||
|
Design Line Speed |
300 m/min |
||
|
Working Line Speed |
120~300 m/min according to material and process art |
||
|
Max. Extrusion Capacity |
280kg/h Each |
280kg/h Each |
350kg/h Each |
|
Main Motor Power |
55 kw*2 |
55 kw*2 |
75 kw*2 |
|
Total power |
280kw |
300kw |
420kw |
|
Dia. of Main Unwinding |
≤φ1200 mm |
||
|
Dia. of 2nd Unwinding |
≤φ500 mm (Optional) |
||
|
Dia. of Winding |
≤φ1300 mm |
||
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
||
Main components
