Tank Fabric Coating Machine
JDLM1300/90, 1700/100, 2400/110
JDLM1300/90, JDLM1700/100, JDLM2400/110

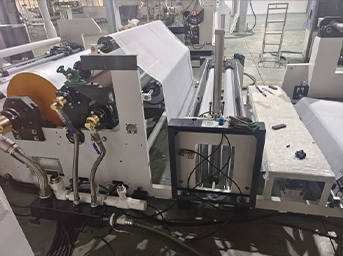

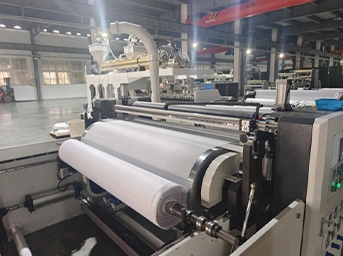

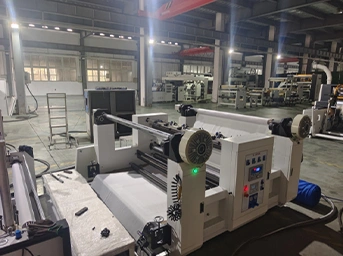

Tank Fabric Coating Machine
Finished Film Width:
1300-2200 mm
Lamination Thickness:
0.1-0.3 mm
Working Line Speed:
2~20 m/min
Specifications
|
Model |
JDLM1300/90 |
JDLM1700/100 |
JDLM2400/110 |
|
Screw Dia. |
Φ90 mm |
Φ100 mm |
Φ110 mm |
|
Finished film width |
600-1200 mm |
900-1600 mm |
1300-2200 mm |
|
Lamination Thickness |
0.1-0.3 mm |
||
|
Main Unwinder Material |
Fabric |
||
|
2nd Unwinder Material |
Film. Foil. Fabric |
||
|
Usable Resin (Coating Grade) |
LDPE, PP |
||
|
Design Line Speed |
30 m/min |
||
|
Working Line Speed |
2~20 m/min according to material and process art |
||
|
Max. Extrusion Capacity |
150kg/h |
180kg/h |
250kg/h |
|
Main Motor Power |
30 kw |
37 kw |
45 kw |
|
Total power |
120kw |
140kw |
210kw |
|
Dia.of Main Unwinding |
≤φ1200 mm |
||
|
Dia.of 2nd Unwinding |
≤φ500/1200 mm (Optional) |
||
|
Dia.of Winding |
≤φ1300 mm |
||
|
Power Supply |
380/3/4/50 (Volt/Ph/Line/Hz) |
||
Main components
