Steel Sheet

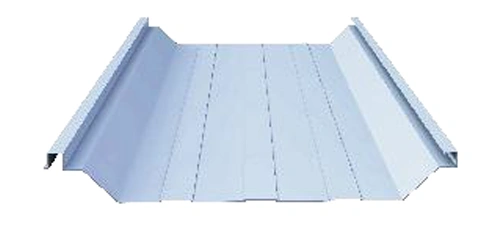

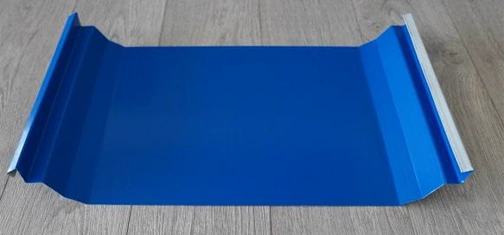

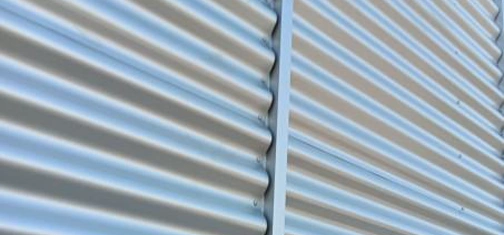

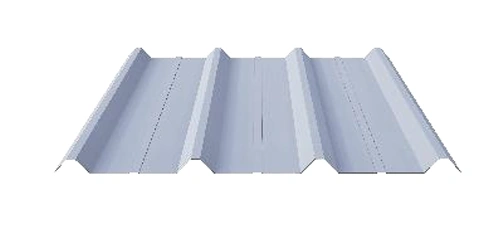

Corrugated Steel Sheet

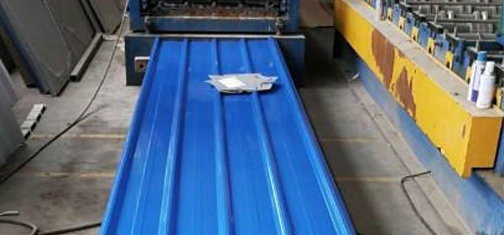

- Precision Roll-Forming — Consistent wave profiles ensure tight, leak-proof assembly for roof and wall systems.
- Corrosion-Resistant Coating — AZ40 Aluzinc galvanized with PE painting delivers long-term durability in harsh environments.

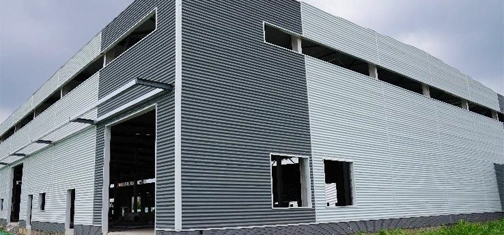

- Versatile Application — Suitable for industrial, commercial, and agricultural buildings with customizable lengths.
Specifications
Corrugated Steel Sheet
| Metal Thickness | Cover Width | Overall Width | Input Coil Width | Wave Height | |
 |

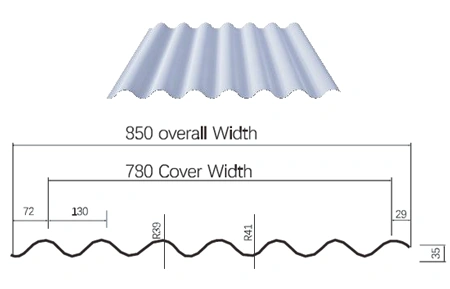

0.4mm-0.7mm | 780mm | 850mm | 1000mm | 35mm |
 |

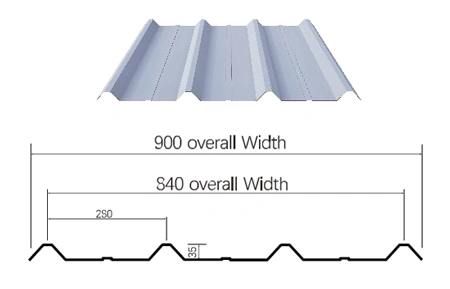

0.4mm-0.7mm | 840mm | 900mm | 1000mm | 35mm |
 |

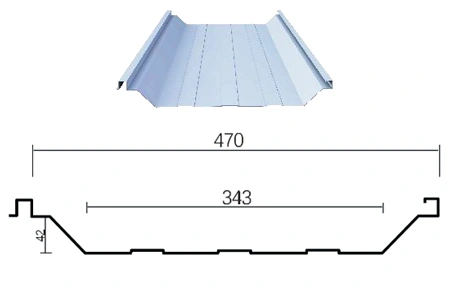

0.5mm-1.0mm | 343mm | 470mm | 600mm | 42mm |

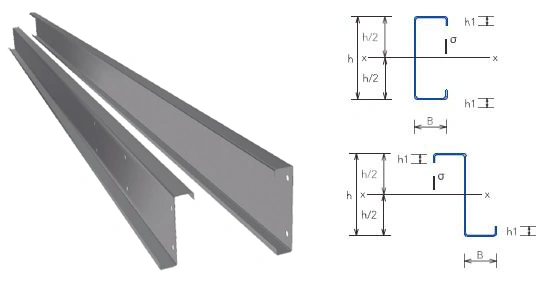

C&Z Purlins
The purlin length can be manufactured as per the customer's requirements. Punching as per the customer's needs
| Model | h | B | h1 | 0 | Cross-sectional Area (cm) |
Every Meter Weight (Kg) |
Moment of inertia 1*(cm) |
| C8 | 80 | 40 | 20 | 2.5 | 5.0 | 3.925 | 41.379 |
| 80 | 50 | 20 | 3 | 6.6 | 5.181 | 83.79 | |
| C10 | 100 | 50 | 20 | 2.5 | 6.0 | 4.710 | 84.932 |
| 100 | 50 | 20 | 3 | 7.2 | 5.652 | 128.43 | |
| C12 | 120 | 50 | 20 | 2.5 | 6.5 | 5.103 | 130.706 |
| 120 | 50 | 20 | 3 | 7.8 | 6.123 | 163.5 | |
| C14 | 140 | 50 | 20 | 2.5 | 7.0 | 5.495 | 188.502 |
| 140 | 50 | 20 | 3 | 8.4 | 6.594 | 235.68 | |
| C16 | 160 | 60 | 20 | 2.5 | 8.0 | 6.280 | 314.16 |
| 160 | 70 | 20 | 3 | 10.2 | 8.007 | 397.83 | |
| 160 | 50 | 20 | 2.5 | 7.5 | 5.888 | 227.63 | |
| C18 | 180 | 60 | 20 | 2.5 | 8.5 | 6.673 | 439.06 |
| 180 | 70 | 20 | 3 | 10.8 | 8.478 | 523.36 | |
| C20 | 200 | 60 | 20 | 3 | 10.8 | 8.478 | 604.28 |
| 200 | 70 | 20 | 3 | 11.4 | 8.949 | 669.77 | |
| C22 | 220 | 70 | 20 | 3 | 12.0 | 9.420 | 838.25 |
| C24 | 240 | 100 | 20 | 3 | 14.4 | 11.304 | 1282.78 |
| C26 | 260 | 100 | 20 | 3 | 15.0 | 11.775 | 1543.49 |
Hot Products
Paper Cup/Cowl/Box
Single-side coating or double-side coating can be selected; cup paper and kraft paper can be selected. The size, shape, and printing pattern can be customized.
Primary Framing Systems
Building width: No matter what primary framing system is used, the building width is defined as the distance from outside fo eave strut of one sidewall to outside of eave strut of the opposite sidewall.Building width does not include the width of Lean - to buildingS or roof extentions
