Manual Hand Winch Lift Gantry Crane
KNPT2-1

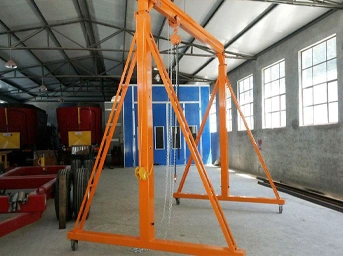

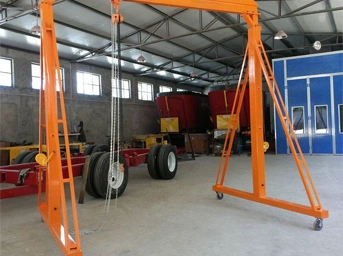

Manual Hand Winch Lift Gantry Crane
Adjustable height; height will be adjusted by sub-stalls; universal wheels with brake, mobile moving.
The PT2-1 gantry crane uses a manual crank winch to adjust the height. The inverted "A" type leg design makes it easy to install and disassemble, and it can withstand heavier loads and make the lifting process more stable. It can be powered by electric or manual power, and the swivel castors are equipped with braking devices. For outdoor use, it can be equipped with a rain cover and painted or stainless steel surface treatment.
Capacities:
1-10 ton
Spans:
1000-6000 mm
Heights:
1000-6000 mm
Machine Highlights
- Adjustable Heights in Incremental Steps: Provides height adjustment in segmented steps, allowing users to set the desired number of increments according to specific requirements.
- Fixed height and span: The height and span can be adjusted as needed using a manual crank winch. Inverted
- Swivel castors with braking devices: The swivel castors with braking devices can ensure the stability of the crane when moving.
- Optional rain cover for outdoor use: The rain cover can protect the crane from the erosion of rain and sun.
- Optional painted or stainless steel surface treatment for outdoor use: The paint can enhance the corrosion resistance of the crane, and stainless steel can improve the weather resistance of the crane.

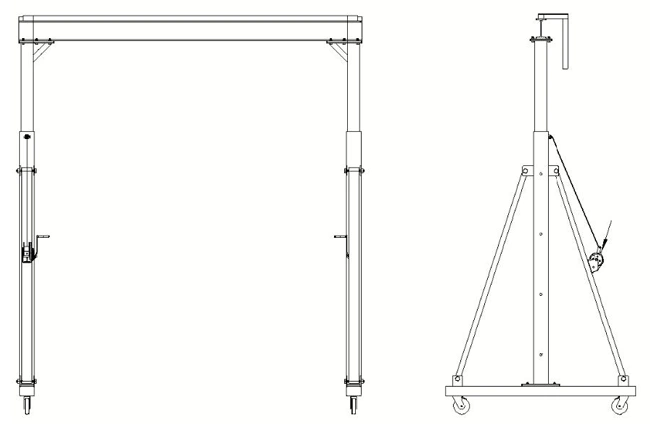

Specifications
| Item No. | Rated load (ton) |
Total height (mm) |
Lifting height (mm) |
Outside span (mm) |
Inner span (mm) |
H Height (mm) |
| KNPT2-1 | 1 | 2600-4000 | 3390 | 3000 | 2760 | 410 |
| 1 | 3500-5000 | 4390 | 3000 | 2760 | 410 | |
| 2 | 2600-4000 | 3215 | 3000 | 2690 | 535 | |
| 2 | 3500-5000 | 4215 | 3000 | 2690 | 535 | |
| 3 | 2600-4000 | 3015 | 3000 | 2690 | 685 | |
| 3 | 3500-5000 | 4015 | 3000 | 2690 | 685 | |
| 5 | 2600-4000 | 2910 | 3000 | 2610 | 740 | |
| 5 | 3500-5000 | 3910 | 3000 | 2610 | 740 |

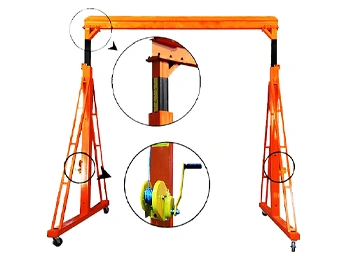

Main components
