Roll-fed Die-cutting Machine
Based on advanced international technology, this fully automatic punching and cutting machine is widely used in industries such as printing, packaging, and paper products. It features a microcomputer control system, a human-machine interface, servo positioning, an AC variable-frequency drive, a manual-pneumatic plate locking mechanism, a photoelectric web-guiding system, and a centralized oil lubrication system.
Specifications
|
Model |
FDC-850x450 |
FDC-920x450 |
FDC-1000x450 |
FDC-1200x450 |
|
Max cutting width |
850 |
920 |
1000 |
1200 |
|
Cutting precision |
±0.15mm |
±0.15mm |
±0.15mm |
±0.15mm |
|
Paper gram weight |
150-400g/㎡ |
150-400g/㎡ |
150-400g/㎡ |
150-400g/㎡ |
|
Production capacity (times/min) |
330-400 |
330-400 |
330-400 |
330-400 |
|
Air pressure requirement |
0.5Mpa |
0.5Mpa |
0.5Mpa |
0.5Mpa |
|
Air pressure consumption |
0.25m³/min |
0.25m³/min |
0.25m³/min |
0.25m³/min |
|
Total power |
10kw |
10kw |
10kw |
12kw |
|
Weight |
3.5T |
4T |
4.5T |
4.5T |
|
Max roller diameter |
1500mm |
1500mm |
1500mm |
1500mm |
|
Dimension (mm) |
3500x1700x1800 |
3500x1900x1800 |
3500x2000x1800 |
3500x2200x1800 |
|
|
The machine utilizes microcomputer control, an HMI interface, and a servo positioning system; combined with a thickened, high-strength wallboard structure, it maintains stability without vibration even during high-speed operation at 300 cycles per minute. |
 |

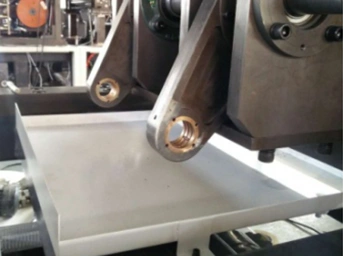

A forced lubrication system automatically supplies oil at fixed intervals (every 10 minutes), ensuring consistent lubrication for the main drive, reducing wear, and significantly extending the equipment's service life. |
 |
Lubrication System: Employs a forced lubrication system to ensure regular oil supply to the main drive, reduce friction, and extend machine longevity, with lubrication cycles set to occur every 10 minutes. |
|
|

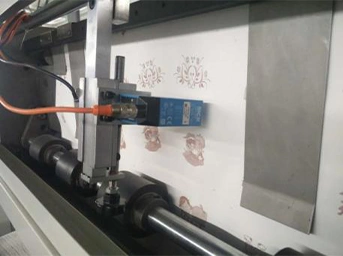

The drive motor works in tandem with a color-mark photoelectric sensor to achieve color recognition and precise alignment, ensuring perfect registration between the die-cutting position and the printed graphics. |
|
|

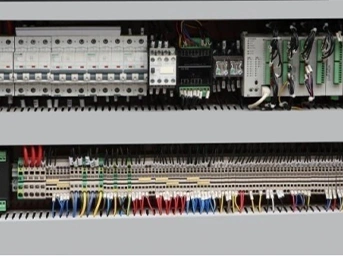

The electrical control cabinet integrates the variable-frequency main motor, PLC, and HMI; utilizing a microcomputer, encoder, and photoelectric tracking, it enables automatic monitoring and precise control over the entire process—including material feeding, transport, die-cutting, and collection—balancing high efficiency and energy savings with stable operation. |
|
|

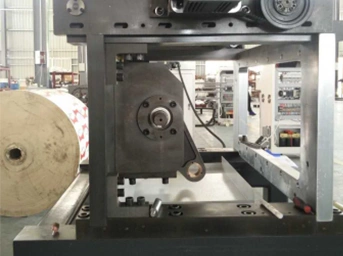

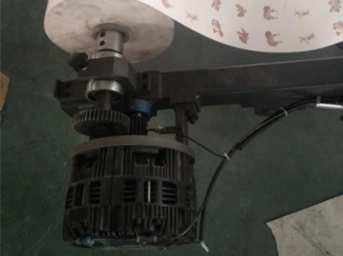

The paper feeding section features a chain-driven pneumatic pressure roller and tension control system combined with hydraulic transmission; it stably handles paper rolls weighing ≥1.5 tons and up to 1.5 meters in diameter, ensuring smooth unwinding suitable for continuous, high-speed production. |
|
|

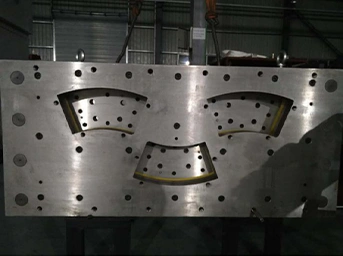

The cutting die is manufactured from imported materials, offering high durability with a design life of up to 300 million cycles; it supports reuse after regrinding and comes with a one-year warranty, significantly reducing long-term consumable costs. |
