Flexographic Printing Press (Sleeve Type)
FM-TS650-1450
FM-TS-650-1450
Flexographic Printing Press (Sleeve Type)
Sleeve-style plate cylinders allow for quick and convenient plate changes, accommodating orders of varying lengths without limitation.
The petal-style structure ensures stable printing pressure and superior stability during high-speed operation.
Max. Printing Width:
1350 mm
Max. Unwinder Diameter:
1524 mm
Max. Speed:
300 m/min
Machine Highlights
- Fully servo-driven, the machine eliminates gear-pitch constraints on print repeat lengths, offering greater versatility.
- Compatible with both water-based and UV inks, the system allows for the selection of either ink type—or a combination of both—based on product requirements, ensuring broad adaptability to various designs and substrates.
- The integration of digital full-inspection, digital plate registration, and pre-registration technologies reduces reliance on manual intervention and increases the finished product yield rate.
Specifications
| FM-TS-650-1450 | ||||
| Max. Web Width | 870 mm | 1020 mm | 1270 mm | 1370 mm |
| Max. Printing Width | 850 mm | 1000 mm | 1250 mm | 1350 mm |
| Printing Repeat | 350-1100 mm | 350-1100 mm | 350-1100 mm | 350-1100 mm |
| Max. Unwinder Diameter | 1524 mm | 1524 mm | 1524 mm | 1524 mm |
| Max. Rewinder Diameter | 1524 mm | 1524 mm | 1524 mm | 1524 mm |
| Max. Speed | 300 m/min | 300 m/min | 300 m/min | 300 m/min |
| Drying Mode | Hot Air Drying / Infrared Drying / UV LED Drying | |||
| Ink Used | Water-based inks / UV inks | |||
| Power Requirement | 380V 3PH 50Hz | |||
| Substrate | Art paper, 80–350gsm paper, aluminum foil paper, BOPP, PET, cardstock, kraft paper, coated paper, PE-coated paper, PE composite paper | |||
| Applicable Material Weight | 80–350 gsm | |||
| Thickness of Plate | 1.7 mm | |||
| Thickness of Self-Adhesive | 0.38 mm / 0.5 mm | |||
| Rack of Machine | Monolithic cast alloy wall panel | |||
| Accuracy of Registration | ±0.1 mm (constant speed) / ±0.12 mm (acceleration/deceleration) | |||
| Range of Tension Controller | 40–110 kg | |||
| Tension Accuracy | ±0.5 kg | |||
Note: As the products are developing day by day, the technical data are subject to change without notice.
Main components

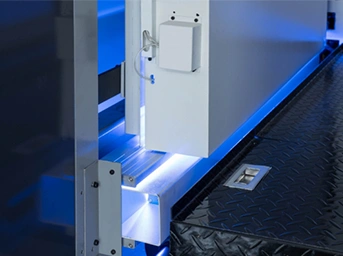

Infrared (IR) Drying + UV drying

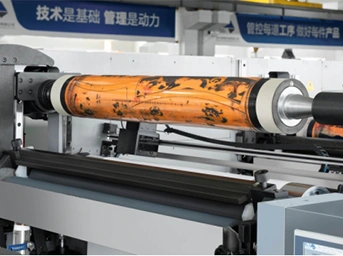

Sleeve-Based Quick Plate Change

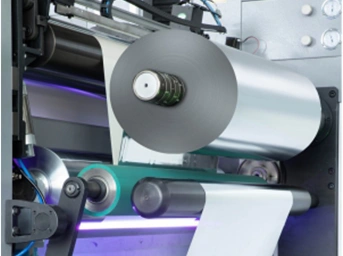

Cold Foil Unit

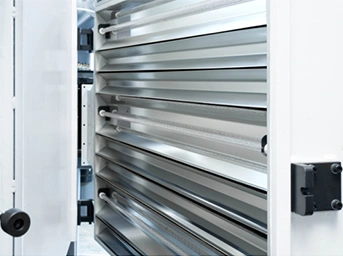

Full Inspection System
