Crawler Self-Propelled Scissor-Type AWP
GTJZC

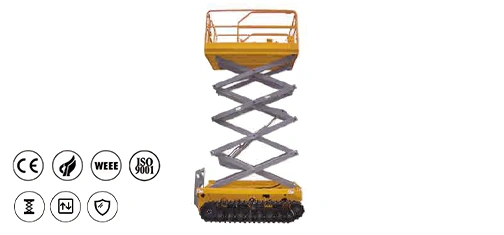

Crawler Self-Propelled Scissor-Type AWP
Steel tracked chassis, can be in-situ steering, suitable for a variety of complex road surfaces.
The worktable can be extended lengthwise to expand the scope of work to meet some special needs.
Excellent stability, strong bearing capacity,ultra-low noise.
Max Platform Height:
8/10/12/14 m
Platform Size:
2.26*1.12/2.7*1.3 m
Load Capacity:
320/450 kg

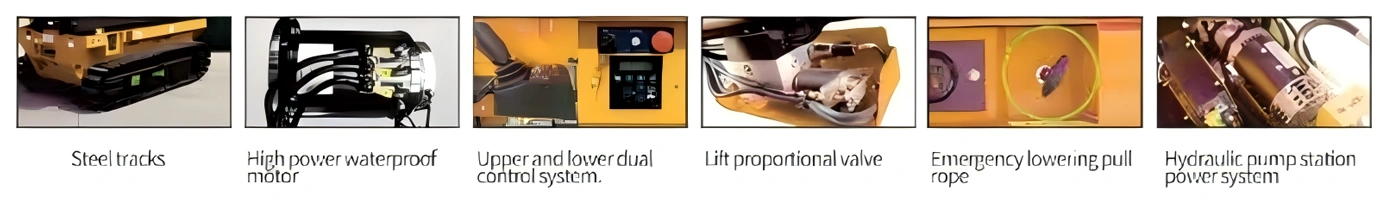

Machine Highlights
- With a brake system, climbing and downhill operation is trouble-free.
- The fault code is automatically displayed to facilitate quick repair and maintenance and save time.
- The driving control is accurate, stable, convenient, and reliable.
- Hydraulic leg one-key leveling system, suitable for pothole road conditions.
- Lifting with proportional valve control, smooth and comfortable.
- The modular arrangement of hydraulic and electrical components provides strong controllability.

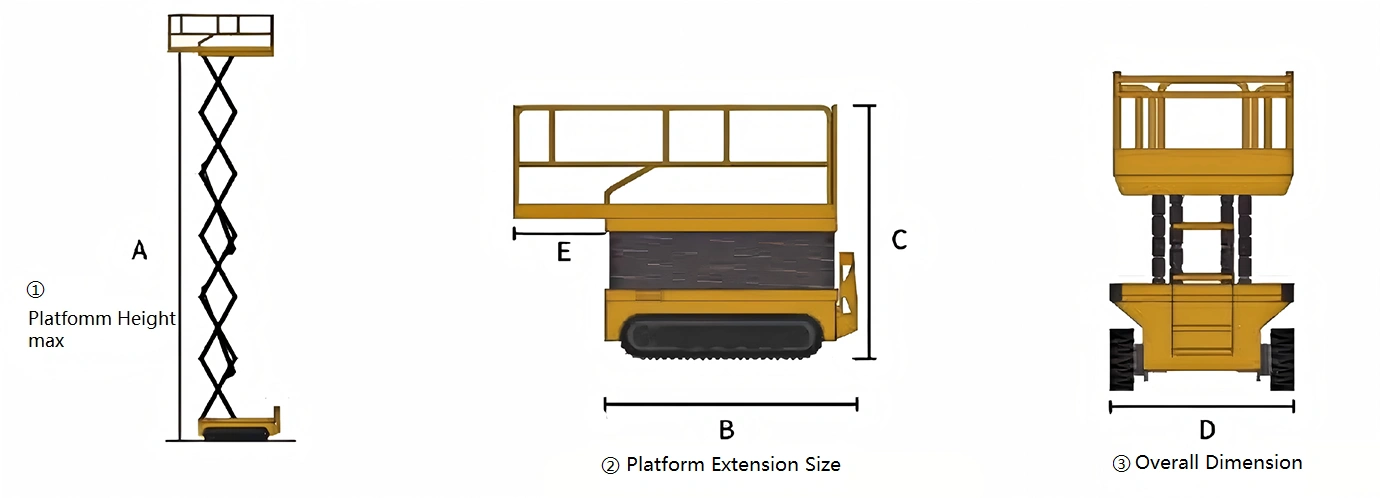

Specifications
| Model | Overall Dimension (mm) | Platform Size (mm) | Platform Height max (m) | Platform Expansion Size (m) | Load Capacity (kg) | Weight (kg) |
| GTJZ-C08 | 2705*1325*2500 | 2260*1120 | 8 | 0.9 | 450 | 3000 |
| GTJZ-C10 | 2515*1390*2041 | 2260*1120 | 10 | 0.9 | 320 | 3200 |
| GTJZ-C12 | 2855*1390*2172 | 2260*1120 | 12 | 0.9 | 320 | 3670 |
| GTJZ-C14 | 3100*2100*2200 | 2700*1300 | 14 | 0.9 | 320 | 3900 |
