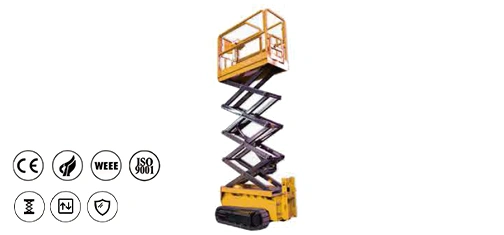

Mini Crawler Self-Propelled Scissor-Type AWP
Rubber-tracked chassis; can steer in situ with little damage to the ground.
Extendable/telescopic table to increase the area of high-altitude operation.
Small and flexible, with strong passability.
Max Platform Height:
6.7 m
Platform Size:
1.68*0.74 m
Load Capacity:
230 kg

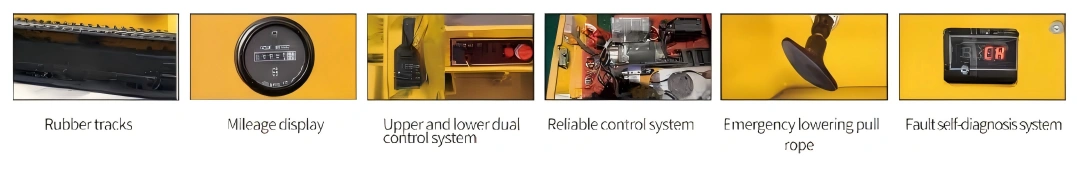

Machine Highlights
- Lifting with proportional valve control, smooth and comfortable.
- The modular arrangement of hydraulic and electrical components provides strong controllability.
- A variety of safety protection devices ensure high safety when walking at full height.
- The driving control is accurate, stable, convenient, and reliable.
- 25% climbing ability, able to climb inclines smoothly.
- Fault codes are automatically displayed for easy maintenance.

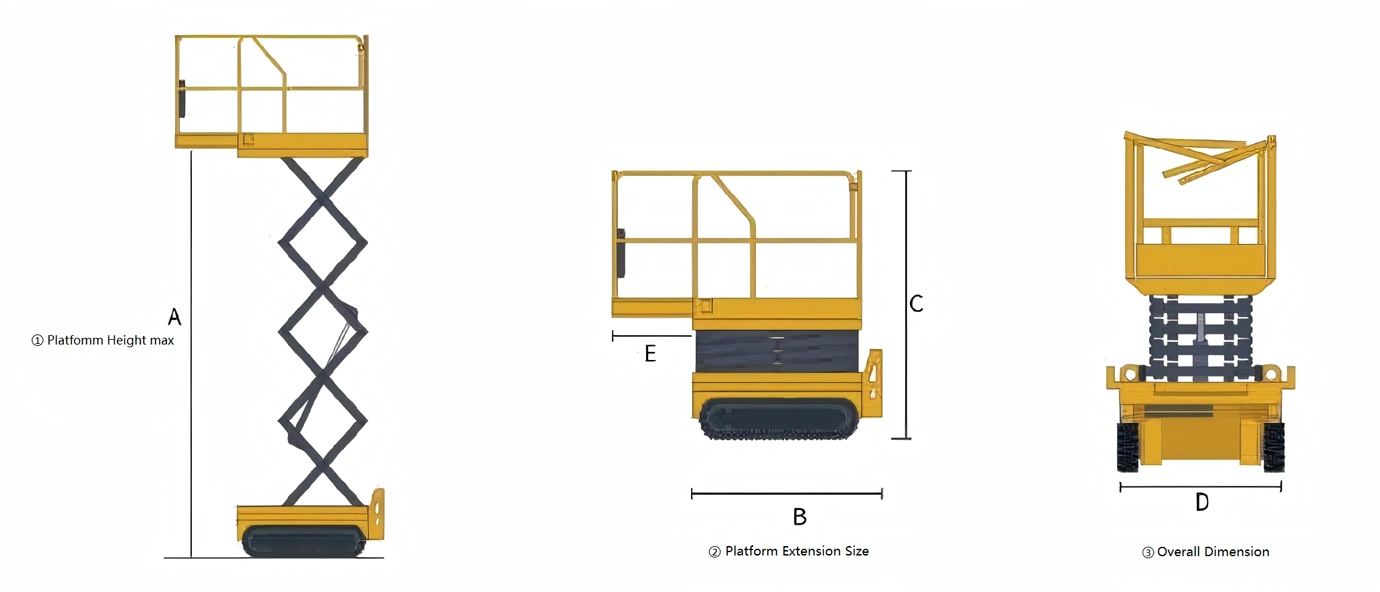

Specifications
| Model | Platform Size (mm) | Load Capacity (kg) | Platform Height max (m) | Overall Dimension (mm) | Platform Expansion Size (m) | Weight (kg) |
| GTJZ-CM4.5 | 1290*716 | 230 | 4.5 | 1515*1097*1660 | 0.6 | 995 |
| GTJZ-CM6.7 | 1680*740 | 230 | 6.7 | 1915*1210*2140 | 0.9 | 1855 |
