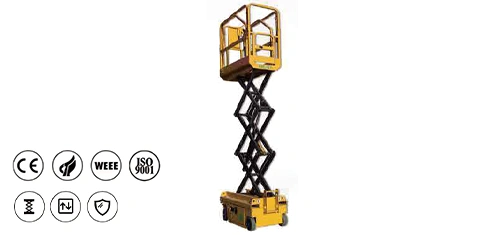

Mini Self-Propelled Scissor-Type AWP
The machine is small in size and light in weight to meet the requirements of narrow-space operation.
Compact design with a small turning radius.
Extendable/telescopic table to increase the area of high-altitude operation.
Max Platform Height:
3/4/5.6/6 m
Platform Size:
1.29*0.716/1.68*0.74 m
Load Capacity:
230/260 kg

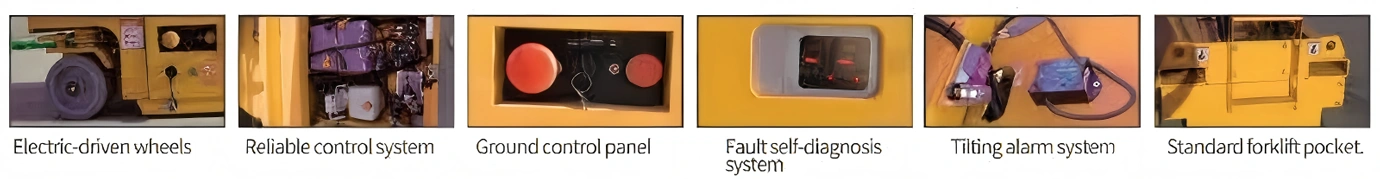

Machine Highlights
- Fully formed manganese steel hinge boom with uniform thickness.
- EfficientAC motordrivesystem, strong performance, strong climbing ability.
- The driving control is accurate, stable, convenient, and reliable.
- Low-height walking, equipped with a variety of safety protection devices, high safety.
- Battery-driven, zero-emission, silent, environmental protection.

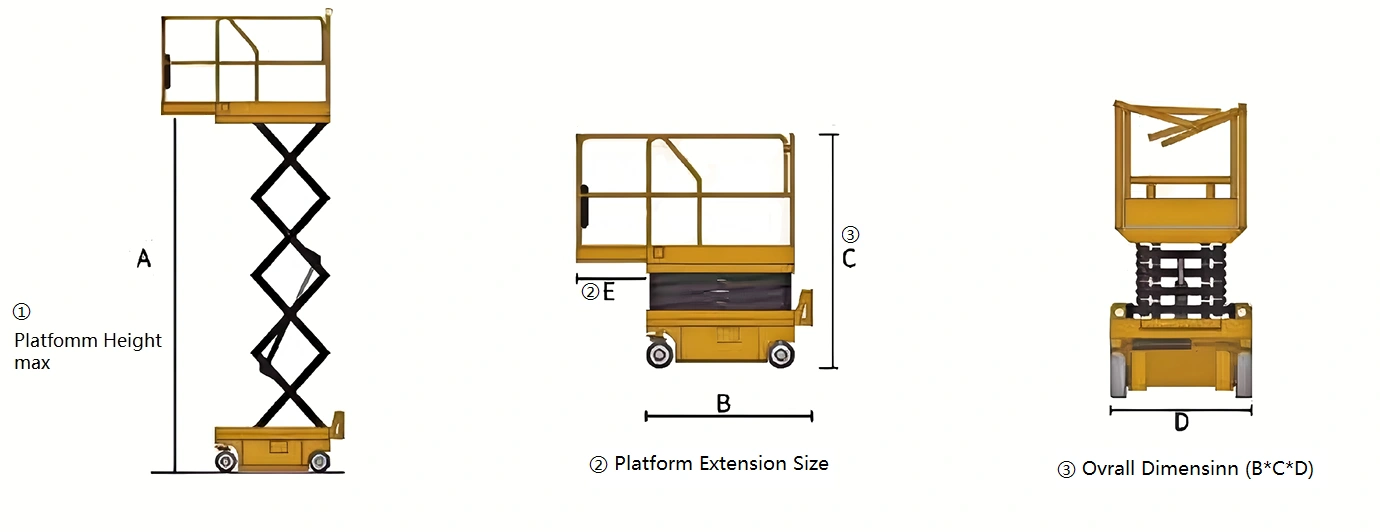

Specifications
| Model | Platform Size (mm) | Load Capacity (kg) | Platform Height max (m) | Overall Dimension (mm) | Platform Expansion Size (m) | Weight (kg) |
| GTJZ-M3 | 1290*716 | 260 | 3 | 1435*760*1550 | 0.6 | 805 |
| GTJZ-M4 | 1290*716 | 230 | 4 | 1435*760*1640 | 0.6 | 860 |
| GTJZ-M5.6 | 1390*716 | 230 | 5.6 | 1510*850*1730 | 0.6 | 970 |
| GTJZ-M6 | 1680*740 | 230 | 6 | 1850*820*1840 | 0.9 | 1430 |
