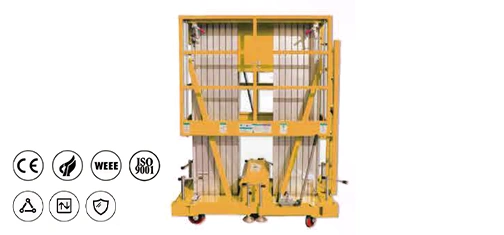

Double Mast-Type AWP
High-strength aviation aluminum profile as a lifting arm, safe and reliable.
Mast built-in sliding block; dynamic clearance is small for more stable operation.
Meets the bearing design requirements of 115%.
Max Working Height:
15.7 m
Platform Size:
1.48*0.6 m
Load Capacity:
200 kg

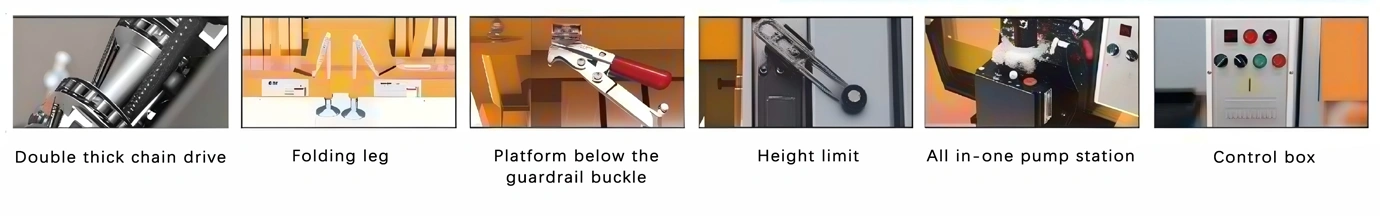

Machine Highlights
- Double-lifting drive chain, strong bearing capacity, high safety factor.
- Suction cup leveling legs with a level indicator to provide smooth support for the platform.
- A proportional electro-hydraulic control system can be used to adjust the rise and fall of the platform.
- Integral hydraulic pump station, with anti-overload and emergency drop function, reliable performance.
- In linewith theintemational general ISO8434-1 standard for high-pressure wire tubing.

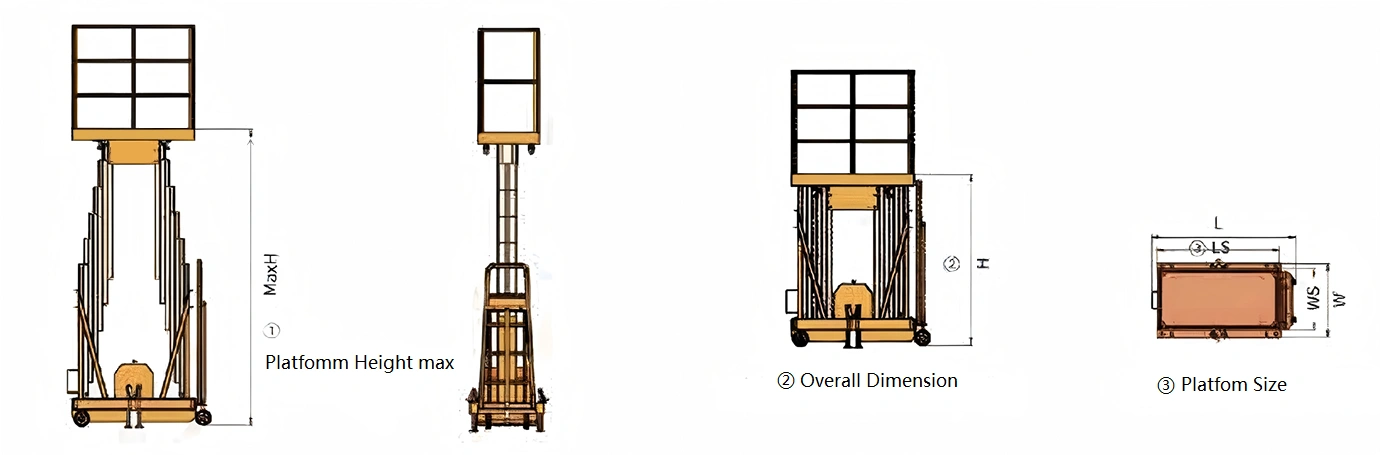

Specifications
| Model | Platform Height max (mm) | Max Working Height (mm) | Load Capacity (kg) | Platform Size (mm) | Weight (kg) | Overall Dimension (mm) | Leg Expansion Size (mm) |
| N6-200 | 6000 | 7700 | 200 | 1120*600 | 420 | 1320*920*1650 | 1890*1830 |
| N8-200 | 8000 | 9700 | 200 | 1120*600 | 480 | 1320*920*1980 | 1890*1830 |
| N9-200 | 9000 | 10700 | 200 | 1245*600 | 550 | 1445*920*1980 | 2065*1940 |
| N10-200 | 10000 | 11700 | 200 | 1360*600 | 590 | 1560*970*1980 | 2270*2080 |
| N12-200 | 12000 | 13700 | 200 | 1480*600 | 640 | 1680*970*1980 | 2430*2200 |
| N14-200 | 14000 | 15700 | 200 | 1480*600 | 700 | 1680*970*2350 | 2430*2200 |
