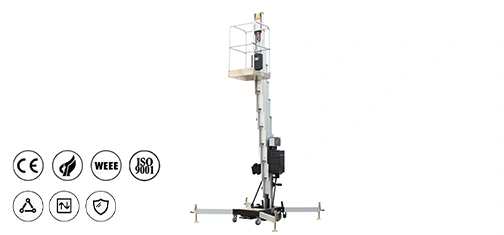

Single Mast Vertical Lift
High-strength aviation aluminum profiles are used as lifting arms, which are safe and reliable.
The mast has a built-in PTFE slider with a low friction coefficient and low thermal expansion and contraction coefficients, and is maintenance-free for life.
Super wear-resistant cable, moves with the aluminum alloy roller, passed 50 times/minute test, 5 million times test.
Single-person loading device allows one person to easily load and unload the equipment onto general vehicles.
Max Working Height:
8/8.8/11.2/12.2/14 m
Platform Size:
0.67×0.65×1.13 m
Loading Capacity:
136/120/150 kg

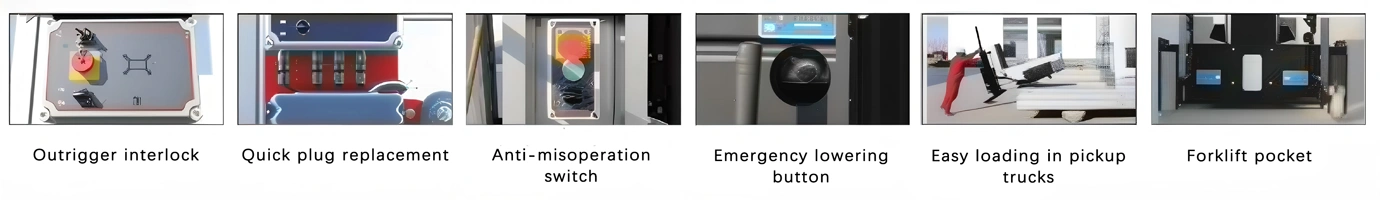

Machine Highlights
- It is equipped with an outrigger linkage device. The outriggers must be correctly inserted into the chassis, and the switch is triggered before the lift can be operated.
- The platform operation panel is equipped with buttons to prevent accidental touch.
- When operating the equipment, you need to press the start and up/down keys at the same time.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- Optional direct plug-in model or removable battery model.
- The equipment complies with CE (SGS) certification and iSO90o1 certification.

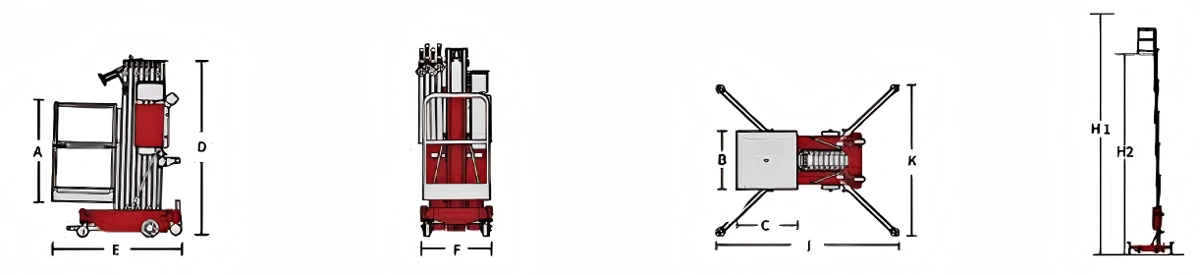

Specifications
| Model | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 |
| Max Working Height (H1) | 8 m | 8.8 m | 11.2 m | 12.2 m | 14 m |
| Max. Platform Height (H2) | 6 m | 7.8 m | 9.2 m | 10.5 m | 12 m |
| Loading Capacity | 150 kg | 150 kg | 150 kg | 136 kg | 120 kg |
| Platform Size (B×C×A) | 0.67×0.65×1.13 m | 0.67×0.65×1.13 m | 0.67×0.65×1.13 m | 0.67×0.65×1.13 m | 0.67×0.65×1.13 m |
| Overall Dimension (E×F×D) | 1.22×0.81×1.99 m | 1.29×0.81×1.99 m | 1.35×1.81×1.99 m | 1.22×0.81×1.99 m | 1.46×0.81×2.68 m |
| Outrigger Coverage (I×K) | 1.72×1.72 m | 1.72×1.72 m | 1.96×1.9 m | 2.2×2.1 m | 2.3×2.1 m |
| Weight (AC) | 350 kg | 370 kg | 390 kg | 420 kg | 490 kg |
| Weight (DC) | 375 kg | 395 kg | 415 kg | 445 kg | 515 kg |
| Power (V/KW) | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
