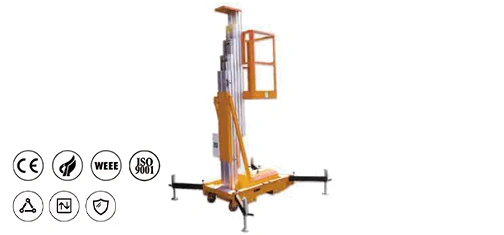

Single Mast-Type AWP
High-strength aviation aluminum profile as a lifting arm, safe and reliable.
Mast built-in sliding block; dynamic clearance is small for more stable lift operation.
Meets the bearing design requirements of 115%.
Max Working Height:
11.7 m
Platform Size:
0.6*0.55 m
Load Capacity:
350 kg

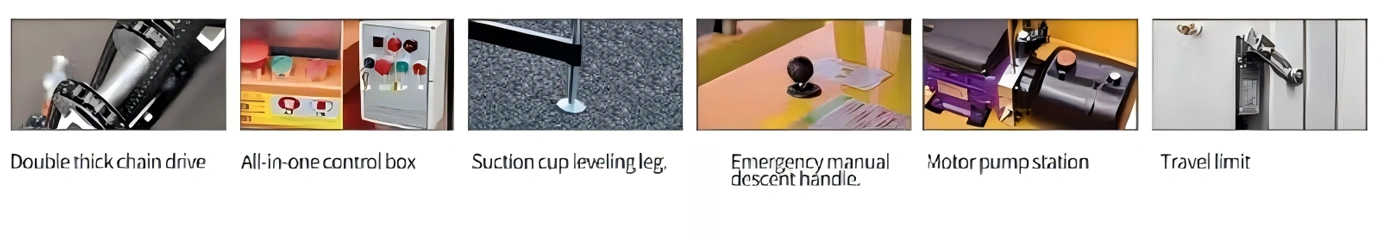

Machine Highlights
- Double-lifting drive chain, strong bearing capacity, high safety factor.
- Suction cup leveling legs with a level indicator to provide smooth support for the platform.
- A proportional electro-hydraulic control system can be used to adjust the rise and fall of the platform.
- Integral hydraulic pump station, with anti-overload and emergency drop function, for reliable performance.
- In line with the international general ISO8434-1 standard for high-pressure wire tubing.

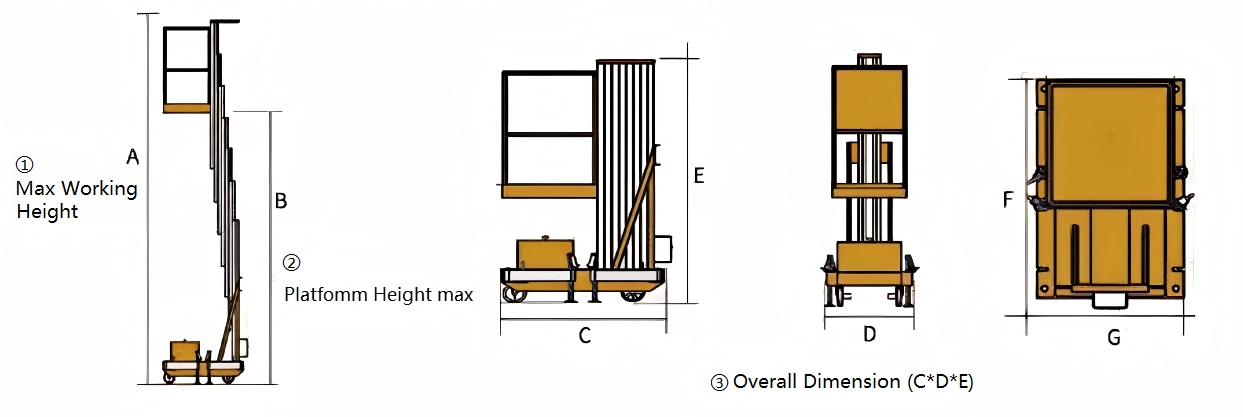

Specifications
| Model | Platform Height max (mm) | Max Working Height (mm) | Load Capacity (kg) | Platform Size (mm) | Weight (kg) | Overall Dimension (mm) | Leg Expansion Size (mm) |
| N4-100 | 4000 | 5700 | 125 | 600*550 | 220 | 1250*820*1650 | 1770*1690 |
| N6-100 | 6000 | 7700 | 125 | 600*550 | 260 | 1310*820*1650 | 1900*1715 |
| N8-100 | 8000 | 9700 | 125 | 600*550 | 300 | 1310*820*1980 | 1900*1715 |
| N9-100 | 9000 | 10700 | 125 | 600*550 | 320 | 1370*820*1980 | 1950*1800 |
| N10-100 | 10000 | 11700 | 125 | 600*550 | 350 | 1370*820*2350 | 2145*1970 |
