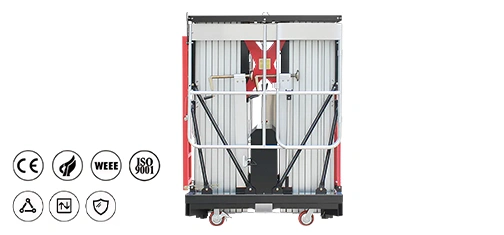

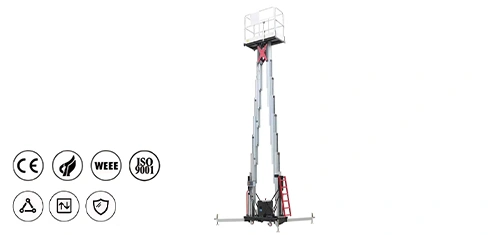

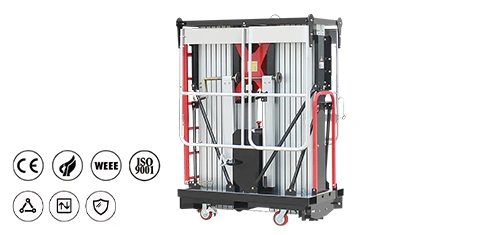

Double Masts Vertical Lift
High-strength aviation aluminum profiles are used as lifting arms, which are safe and reliable.
The mast has a built-in PTFE slider with a low friction coefficient and low thermal expansion and contraction coefficients, and is maintenance-free for life.
Super wear-resistant cable, moves with the aluminum alloy roller, passed 50 times/minute test, 5 million times test.
Max Working Height:
10/12.4/14/16/18 m
Platform Size:
1.45×0.7/ 1.8×0.7 m
Loading Capacity:
150/200/250 kg
Machine Highlights

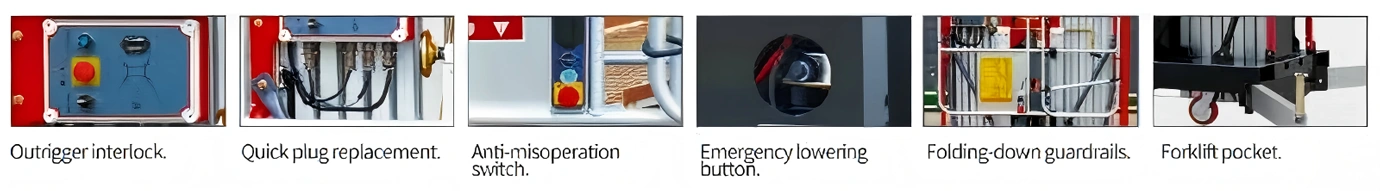

- It is equipped with an outrigger linkage device. The outriggers must be correctly inserted into the chassis, and the switch is triggered before the lift can be operated.
- The platform operation panel is equipped with buttons to prevent accidental touch.
- When operating the equipment, you need to press the start and up/down keys at the same time.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- Optional direct plug-in model or removable battery model.
- The equipment complies with CE (SGS) certification and ISO9001 certification.

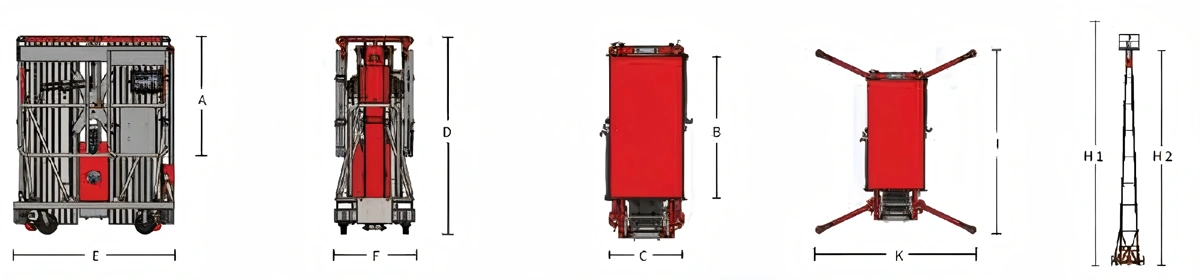

Specifications
| Model | GTWY2-8 | GTWY2-10 | GTWY2-12 | GTWY2-14 | GTWY2-16 |
| Max Working Height (H1) | 10 m | 12.4 m | 14 m | 16 m | 18 m |
| Max. Platform Height (H2) | 8 m | 10.4 m | 12 m | 14 m | 16 m |
| Loading Capacity | 250 kg | 250 kg | 200 kg | 200 kg | 150 kg |
| Platform Size (B×C) | 1.45×0.7 m | 1.45×0.7 m | 1.45×0.7 m | 1.8×0.7 m | 1.8×0.7 m |
| Overall Dimension (E×F×D) | 1.45×0.81×1.99 m | 1.45×0.81×1.99 m | 1.45×0.81×1.99 m | 1.88×0.81×2.68 m | 1.88×1.81×2.68 m |
| Outrigger Coverage (I×K) | 2.45×1.75 m | 2.45×2.1 m | 2.45×2.1 m | 2.7×2.8 m | 2.7×2.8 m |
| Weight (AC) | 645 kg | 715 kg | 750 kg | 892 kg | 996 kg |
| Weight (DC) | 695 kg | 765 kg | 800 kg | 942 kg | 1046 kg |
| Power (V/KW) | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
Hot Products
Single Mast Vertical Lift
High-strength aviation aluminum profiles serve as lifting arms, providing safe, reliable support. The mast has a built-in PTFE slider with a low friction coefficient and low thermal expansion and contraction coefficients, and is maintenance-free for life.

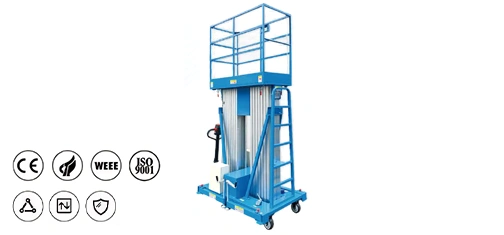

Electric Traction Mast-Type AWP
