Electric Traction Mast-Type AWP
The multifunctional auxiliary handle can be operated with one hand.
High-strength aviation aluminum profile as a lifting arm, safe and reliable.
Mast built-in sliding block; dynamic clearance is small for more stable operation.
Meets the bearing design requirements of 115%.

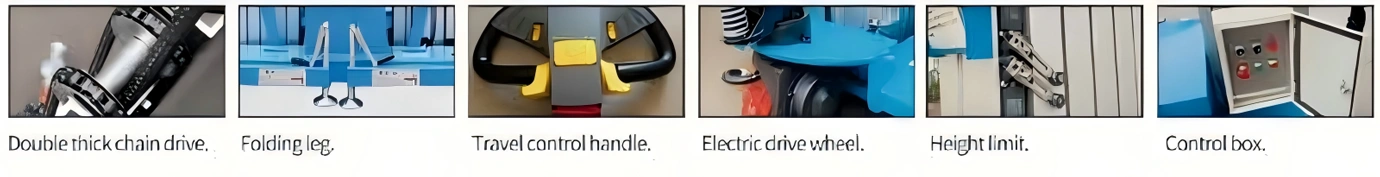

Double lifting drive chain, strong bearing capacity, high safety factor.
Suction cup leveling legs with level indicator to provide smooth support for the platform.
Proportional electro-hydraulic control system can be used to adjust the rise and fall of the platform.
Integral hydraulic pump station with anti-overload and emergency drop function, reliable performance.
Max. Platform Height:
6/8/10/14 m
Platform Size:
0.65*0.65/ 1.2*0.63/ 1.5*0.63 m
Load Capacity:
130/ 150/ 250/ 300 kg
Specifications

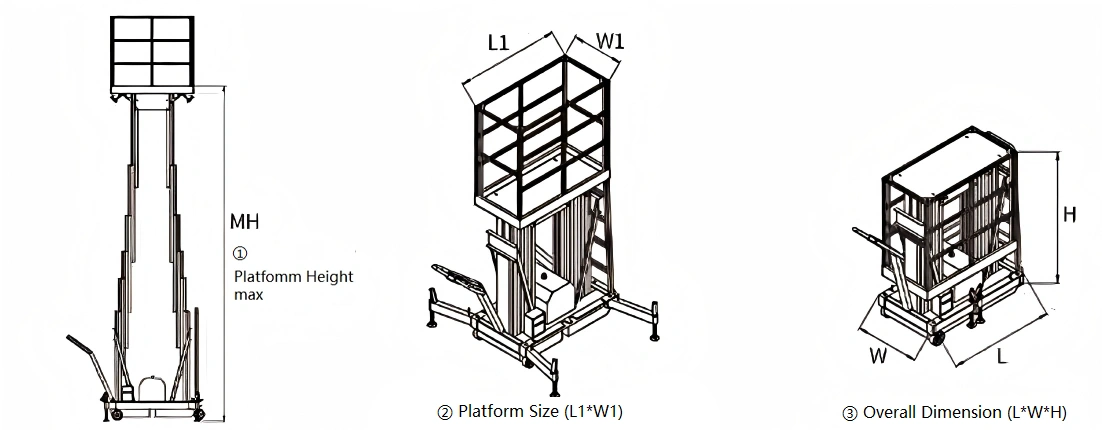

| Model | Platform Height max (mm) | Load Capacity (kg) | Platform Size (mm) | Weight (kg) | Overall Dimension (mm) |
| N8-100 | 8000 | 130 | 650*650 | 520 | 1850*780*1980 |
| N10-100 | 10000 | 130 | 650*650 | 550 | 1850*780*1980 |
| N6-200 | 6000 | 300 | 1200*630 | 710 | 1850*850*1880 |
| N10-200 | 10000 | 250 | 1500*630 | 860 | 2150*850*1980 |
| N14－200 | 14000 | 150 | 1500*630 | 1020 | 2250*1050*2340 |
