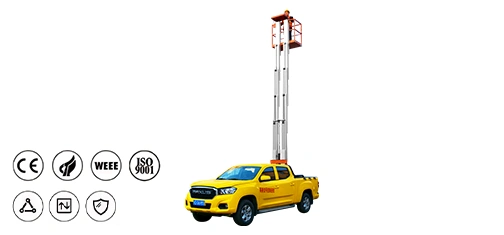

Vehicle-Mounted Mast-Type AWP
Converted from a mast lift platform and a truck to achieve the carrier lifting operation.
Utilizes the vehicle engine power, achieving the lifting function using engine power.
High-strength aviation aluminum profile as the lifting arm, safe and reliable.
Mast built-in sliding block, dynamic gap is small, lift is more stable.
Max Working Height:
7.7/9.7/11.7 m
Platform Size:
1.27*0.65 m
Load Capacity:
250/300 kg

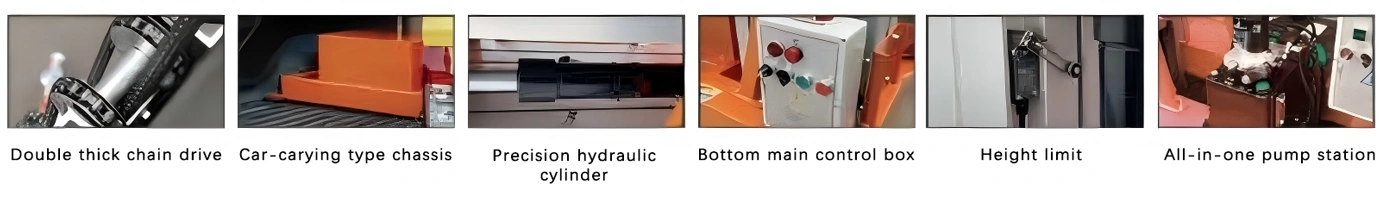

Machine Highlights
- Meets the bearing design requirements at 115%.
- Double-lifting drive chain, strong bearing capacity, high safety factor.
- A proportional electro-hydraulic control system can be used to adjust the rise and fall of the platform.
- Integral hydraulic pump station, anti-overload, emergency drop function, reliable performance.
- In line with the international general ISO8434-1 standard for high-pressure wire tubing.

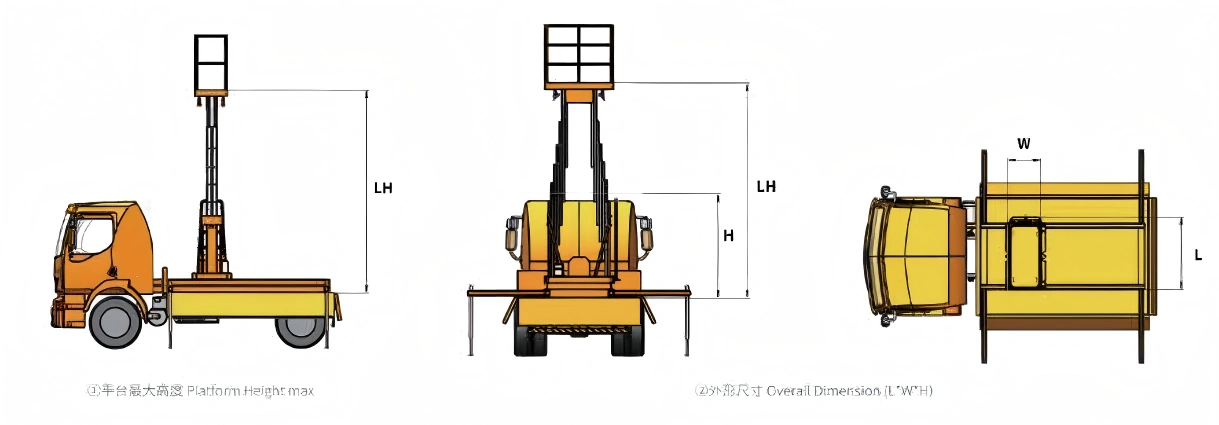

Specifications
| Model | Platform Height max (mm) | Max Working Height (mm) | Load Capacity (kg) | Platform Size (mm) | Overall Dimension (mm) |
| N6-200 | 6000 | 7700 | 300 | 1270*650 | 1350*1450*1910 |
| N8-200 | 8000 | 9700 | 300 | 1270*650 | 1350*1450*1910 |
| N10-200 | 10000 | 11700 | 250 | 1270*650 | 1350*1450*1910 |
