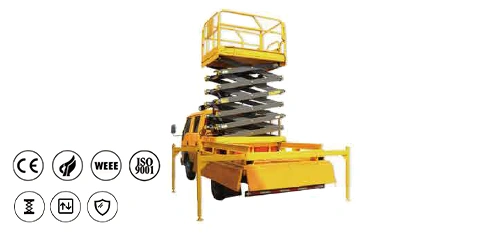

Vehicle-mounted Mobile Scissor Lift Platform
The use of vehicle direct current or engine power to drive the lift is adapted for high-altitude operation of large mobility.
Fully formed manganese steel hinge boom with uniform thickness.
Customized special vehicle steel frame.
Lifting Height:
4/6/8/12 m
Platform Size:
2.01*1.13/ 2.462*1.21 m
Load Capacity:
500/1000 kg

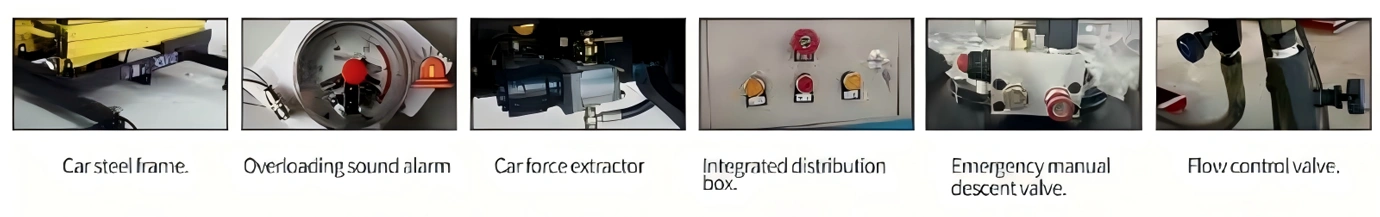

Machine Highlights
- Detachable guardrail for easy access to places with height restrictions.
- Equipped with an overload pressure-limiting valve, it will stop when overloaded.
- Suction-cup leveling legs provide smooth platform support.
- Oil pipe explosion-proof valve and a steel mesh hydraulic oil pipe enhance the safety of the oil circuit.
- The operation platform and the bottom of the equipment have an emergency stop button and a lifting operation button.
- Intelligent integrated electrical control system, standard modular design, fast response time.

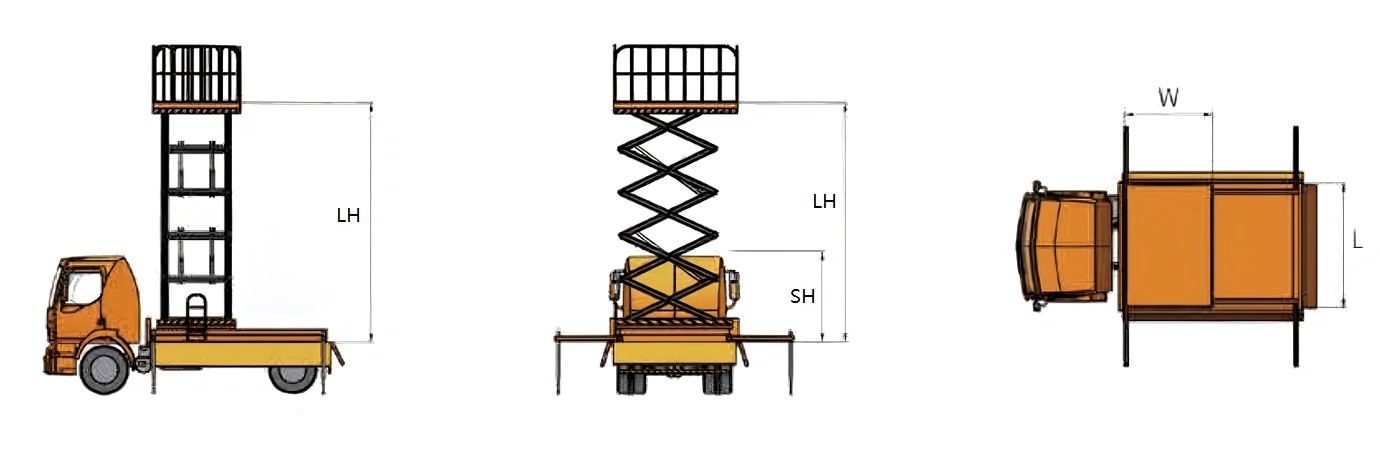

Specifications
| Model | Platform Size (mm) | Lifting Height (m) | Load Capacity (kg) | Weight (kg) | Overall Dimension (mm) |
| XB-0.5-4 | 2010*930 | 4 | 500 | 850 | 2016*1100*1100 |
| XB-0.5-6 | 2010*930 | 6 | 500 | 950 | 2016*1100*1295 |
| XB-0.5-8 | 2010*930 | 8 | 500 | 1070 | 2016*1100*1415 |
| XB-0.5-12 | 2462*1210 | 12 | 500 | 1950 | 2465*1360*1780 |
| XB-1.0-4 | 2010*1130 | 4 | 1000 | 1150 | 2016*1290*1150 |
| XB-1.0-6 | 2010*1130 | 6 | 1000 | 1200 | 2016*1290*1310 |
| XB-1.0-8 | 2010*1130 | 8 | 1000 | 1450 | 2016*1290*1420 |
| XB-1.0-12 | 2462*1210 | 12 | 1000 | 2400 | 2465*1360*1780 |
