Off-Road Self-Propelled Scissor-Type AWP
GTJZ-O0.75-20

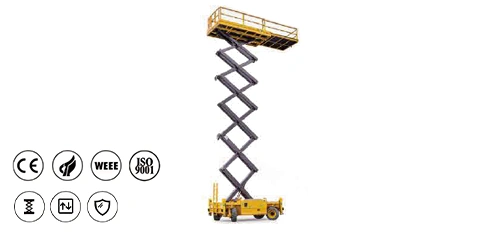

Off-Road Self-Propelled Scissor-Type AWP
The machine has strong off-road performance and strong adaptability to extreme working conditions.
Ground clearance up to 0.4m, strong passability.
Collapsible platform, high passability, wide range of operation.
Max Working Height:
22 m
Platform Size:
4.59*2.25 m
Load Capacity:
750 kg
Machine Highlights
- Off-roadtires, strong grip, suitable for complex road surfaces.
- Front-wheel steering,rear-wheel drive, front axle floating for superior performance.
- 40% climbing ability, able to climb inclines smoothly.
- Compact structure, high structural strength.
- Matching overweight sensor, emergency descent device, high safety factor.
- One key leveling function: automatic leveling of the whole machine, safe and stable.
Specifications

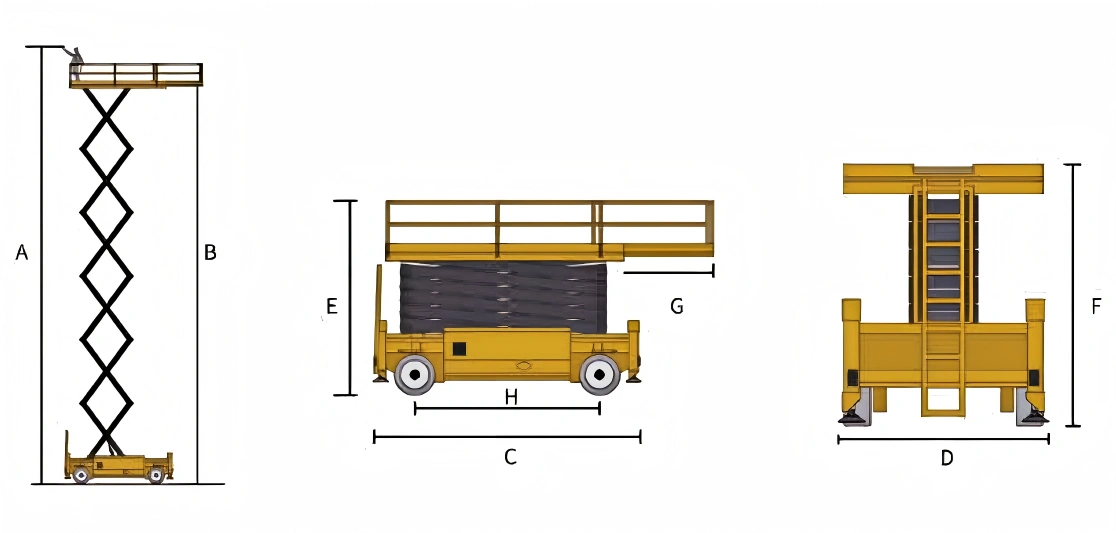

| Model | GTJZ-O 0.75-20 |
| Maximum working height A | 22.0m |
| Maximum platform height B | 20.00m |
| Length of machine C | 4.95m |
| Machine width D | 2.46m |
| Height of the whole machine (Guardrail not folded) E | 3.86m |
| Machine height (Guardrail folded) F | 3.00m |
| Working platform size (L*W) | 4.59m×2.25m |
| Platform extension size G | 2.70m |
| Minimum ground clearance (Fold/Raise) | 0.40m |
| wheelbase H | 3.30m |
| Minimum turning radius (Inner wheel/Outer wheel) | 1.25m/3.40m |
| Safe working load | 750kg |
