Self Propelled Scissor-Type AWP
GTJZ

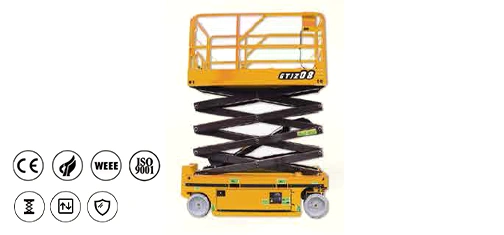

Self Propelled Scissor-Type AWP
The driving control is accurate, stable, easy, and reliable.
Hydraulic drive platform for lifting and walking.
Full-height driving, equipped with a variety of safety protection devices, for high safety.
Max Platform Height:
6/8/10/11.85/13.8 m
Platform Size:
2.25*1.13/ 2.636*1.13 m
Load Capacity:
230/320/450 kg

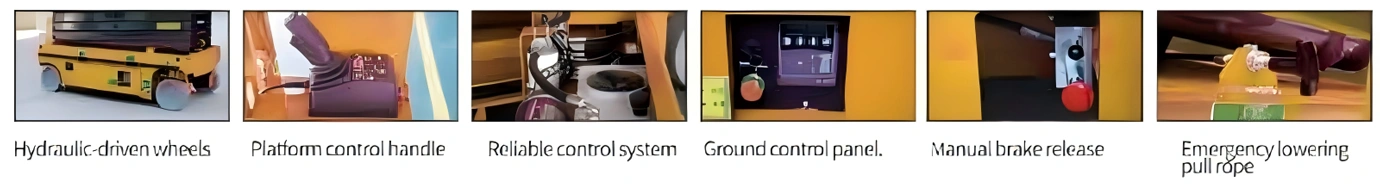

Machine Highlights
- Extension/retractable table,collapsible guardrail for easy access to places with height restrictions.
- Fully formed manganese steel hinge boom with uniform thickness.
- American SUN cartridge valve to optimize the hydraulic compensation system, bringing high efficiency.
- Oil pipe explosion-proof valve and steel mesh hydraulic oil pipe enhance the safety of the oil circuit.
- The operation platform and the bottom of the equipment are equipped with an emergency stop button and a lifting operation button.
- American TROJAN battery, high capacity rate, strong endurance.

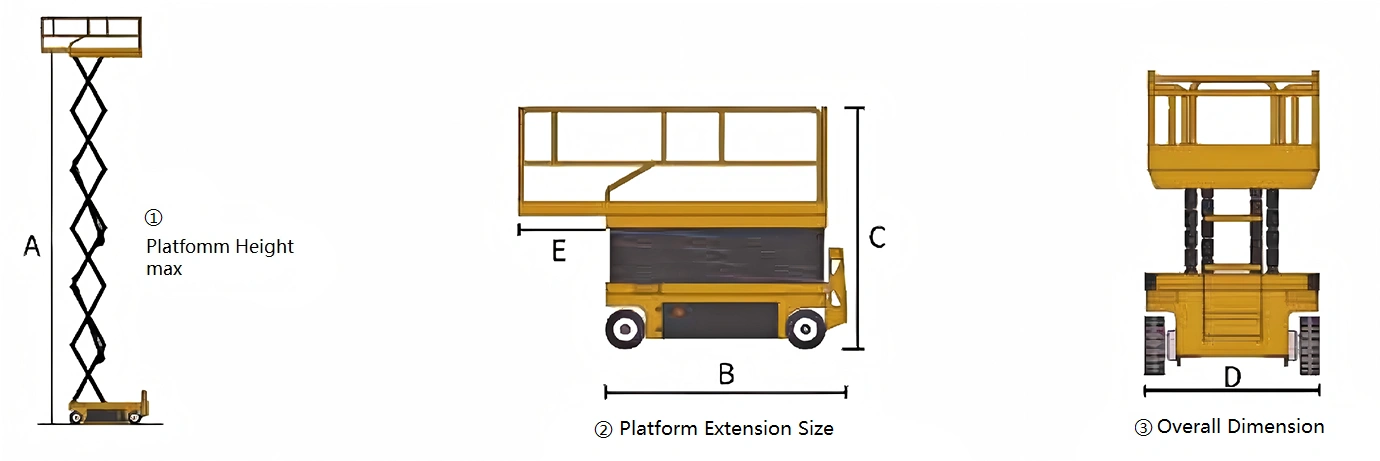

Specifications
| Model | Platform Size (mm) | Load Capacity (kg) | Platform Height max (m) | Overall Dimension (mm) | Platform Expansion Size (m) | Weight (kg) |
| GTJZ-6 | 2250*1130 | 450 | 6 | 2475*1190*2180 | 0.9 | 2066 |
| GTJZ-8 | 2250*1130 | 450 | 8 | 2470*1190*2290 | 0.9 | 2208 |
| GTJZ-10 | 2250*1130 | 320 | 10 | 2470*1190*2430 | 0.9 | 2506 |
| GTJZ-12 | 2250*1130 | 320 | 11.85 | 2470*1190*2560 | 0.9 | 2900 |
| GTJZ-14 | 2636*1130 | 230 | 13.8 | 2850*1380*2580 | 0.9 | 3570 |
