Self-Propelled Double Mast-Type AWP
AMWP7.5/2100, 9/2100

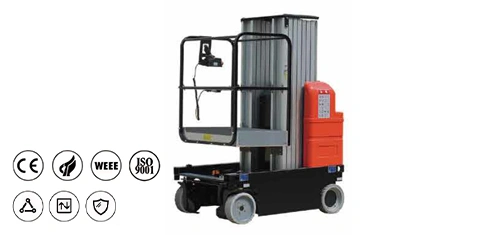

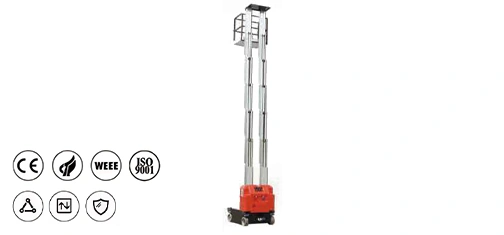

Self-Propelled Double Mast-Type AWP
High-strength aviation aluminum profiles are used as lifting arms, which are safe and reliable.
The mast has a built-in PTFE slider with a small friction coefficient and thermal expansion and contraction coefficient, and is maintenance-free for life.
Automatic pothole protection system. When the platform rises, the protective plate automatically opens to prevent the equipment from falling into potholes and tipping over.
Max Working Height:
9.5/11 m
Platform Size:
1×0.7 m
Loading Capacity:
150/200 kg

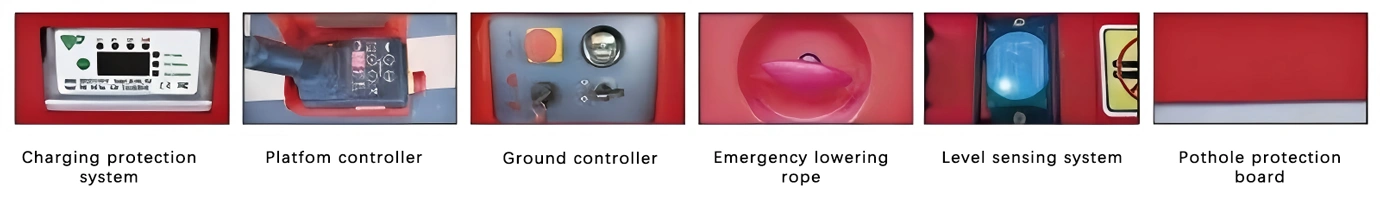

Machine Highlights
- Equipped with an automatic braking system; maximum braking distance: 61cm±30cm.
- Anti-pinch protection. When the device drops to 2 meters, it will automatically stop descending. After 3 seconds, press the down button again to descend.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- The oil pipe explosion-proof system adopts new high-quality explosion-proof valves and steel mesh hydraulic oil pipes to effectively enhance the safety of the pipeline.
- The equipment complies with CE (SGS) certification and ISO9001 certification.
Specifications
| Model | AMWP7.5-2100 | AMWP9-2100 |
| Max Working Height (H1) | 9.5 m | 11 m |
| Max. Platform Height (H2) | 7.5 m | 9 m |
| Loading Capacity | 200 kg | 150 kg |
| Platform Size (B×C) | 1×0.7 m | 1×0.7 m |
| Overall Dimension (E×F×D) | 1.55×1.01×2 m | 1.55×1.01×2 m |
| Drive Tyres | Φ305×100 mm | Φ305×100 mm |
| Travel Speed (Stowed/ Raised) | 4.0/1.1 km/h | 4.0/1.1 km/h |
| Up/Down Speed | 48/40 sec | 56/49 sec |
| Weight | 1270 kg | 1345 kg |
