Self-Propelled Single Mast-Type AWP
AMWP6-1100, 7.5-1100
Self-Propelled Single Mast-Type AWP
High-strength aviation aluminum profiles are used as lifting arms, which are safe and reliable.
The mast has a built-in PTFE slider with a small friction coefficient and thermal expansion and contraction coefficient, and is maintenance-free for life.
Automatic pothole protection system. When the platform rises, the protective plate automatically opens to prevent the equipment from falling into potholes and tipping over.
Max Working Height
8/9.5 m
Platform Size
0.78×0.70 m
Loading Capacity
125/150 kg

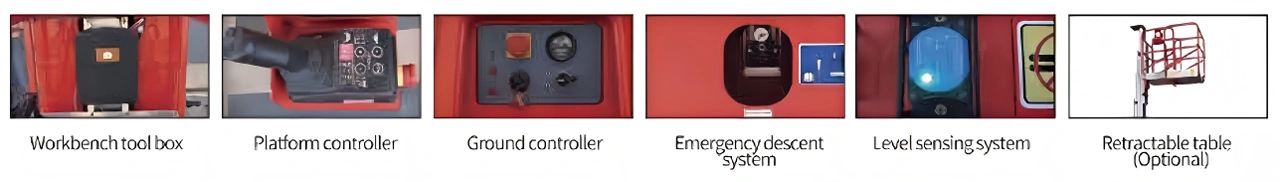

Machine Highlights
- Equipped with an automatic braking system, maximum braking distance: 61cm±30cm.
- Anti-pinch protection. When the device drops to2 meters, it will automatically stop descending. After 3 seconds, press the down button again to descend.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- The oil pipe explosion-proof system adopts new high-quality explosion-proof valves and steel mesh hydraulic oil pipes to effectively enhance the safety of the pipeline.
- The equipment complies with CE (SGS) certification and ISO9001 certification.
Specifications

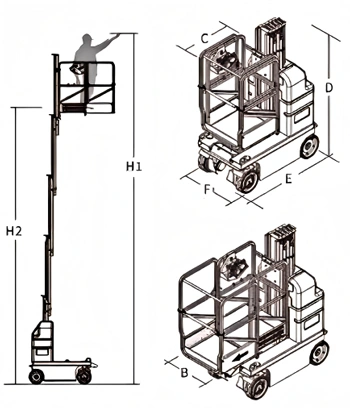

| Model | AMWP6-1100 | AMWP7.5-1100 |  |
| Max Working Height (H1) | 8 m | 9.5 m | |
| Max. Platform Height (H2) | 6 m | 7.5 m | |
| Loading Capacity | 150 kg | 125 kg | |
| Platform Size (B×C) | 0.78×0.70 m | 0.78×0.70 m | |
| Overall Dimension (E×F×D) | 1.4×0.76×1.99 m | 1.4×0.76×1.99 m | |
| Drive Tyres | Φ305×100 mm | Φ305×100 mm | |
| Travel Speed (Stowed/ Raised) | 4.0/1.1 km/h | 4.0/1.1 km/h | |
| Up/Down Speed | 48/40 sec | 53/45 sec | |
| Weight | 1120 kg | 1190 kg |
