Self-Propelled Mast-type AWP
With a high-strength alloy steel mast, max working height up to 11.2 meters, with a Max horizontal reach of 3 meters.
A345"non-continuous turntable coupled with a 130 (-60°/+70°) vertical rotating jib allows for precise positioning.

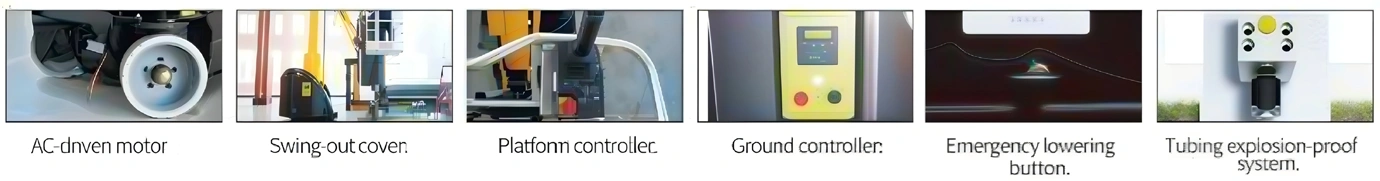

The vertical mast lift uses an AC drive motor, which helps keep maintenance costs low.
Max Working Height:
11.2 m
Platform Size:
0.62×0.87 m
Loading Capacity:
200 kg
Machine Highlights
- It has 25% gradeability and a travel speed of 4.5 km/h. Providing convenient operation for aerial work.
- The stable operating system allows the operator to perform multiple operations simultaneously, significantly improving working efficiency.
- With automatic levelling. tilt protection and overlap protection systems, the vertical mast lift makes the operation more stable and safe.
- The equipment complies with CE (SGS) certification and ANSI certification.
Specifications
| Model | AMW11.2-8100 |  |

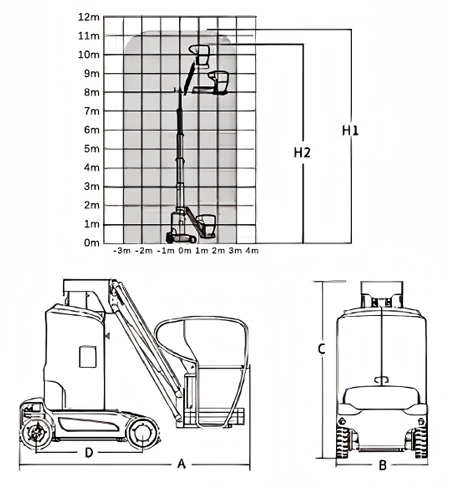

| Max Working Height (H1) | 11.2 m | |
| Max. Platform Height (H2) | 9.2 m | |
| Loading Capacity | 200 kg | |
| Platform Size | 0.62×0.87 m | |
| Overall Dimension (A×B×C) | 2.53×1.0×0.99 m | |
| Turret Rotation | 345° | |
| Jib Movement | 130° | |
| Wheelbase (D) | 1.22 | |
| Drive Tyres | Φ381×127 mm | |
| Travel Speed (Stowed/ Raised) | 4.5/0.5 km/h | |
| Up/Down Speed | 42/38 sec | |
| Weight | 2950 kg |
