Self-propelled Vertical Mast-type AWP
AMWP3.6-6100, 4.8-6100, 6-6100

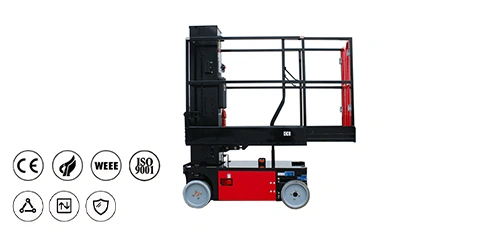

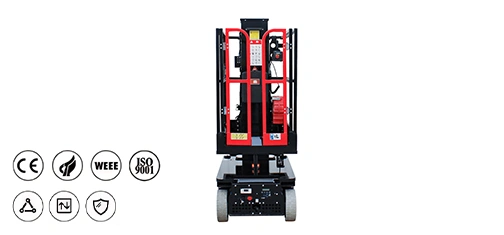

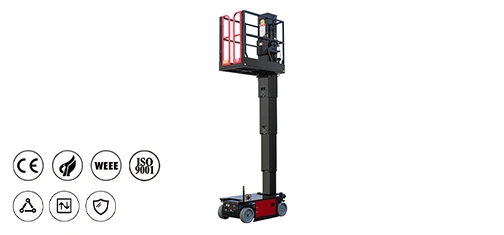

Self-propelled Vertical Mast-type AWP
The sleeve structure has excellent stability and little shaking.
Using high-quality sliders, the friction coefficient and thermal expansion and contraction coefficients are small, and it is maintenance-free for life.
Automatic pothole protection system. When the platform rises, the protective plate automatically opens to prevent the equipment from falling into potholes and tipping over.
Max Working Height:
5.6/6.8/8 m
Platform Size:
1.3×0.7 m
Loading Capacity:
159/227 kg
Machine Highlights
- Equipped with an automatic braking system, maximum braking distance: 61cm±30cm.
- Anti-pinch protection. When the device drops to 2 meters, it will automatically stop descending. After 3 seconds, press the down button again to descend.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- The oil pipe explosion-proof system adopts new high-quality explosion-proof valves and steel mesh hydraulic oil pipes to effectively enhance the safety of the pipeline.
- The equipment complies with CE (SGS) certification and ISO9001 certification.
Specifications
| Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 |  |

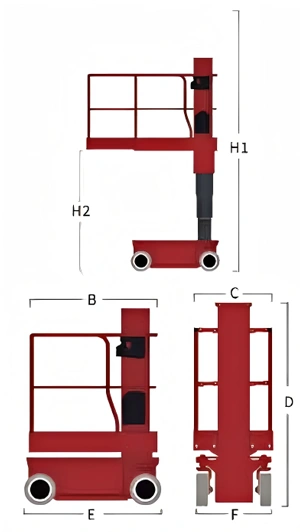

| Max Working Height (H1) | 5.6 m | 6.8 m | 8 m | |
| Max. Platform Height (H2) | 3.6 m | 4.8 m | 6 m | |
| Loading Capacity | 227 kg | 227 kg | 159 kg | |
| Platform Size (B×C) | 1.3×0.7 m | 1.3×0.7 m | 1.3×0.7 m | |
| Overall Dimension (E×F×D) | 1.36×0.76×1.98 m | 1.36×0.76×1.98 m | 1.36×0.8×1.98 m | |
| Drive Tyres | Φ305×100 mm | Φ305×100 mm | Φ305×100 mm | |
| Travel Speed (Stowed/ Raised) | 4.0/1.1 km/h | 4.0/1.1 km/h | 4.0/1.1 km/h | |
| Up/Down Speed | 31/32 sec | 41/42 sec |
52/54 sec |
|
| Weight | 810 kg | 980 kg | 1180 kg |
