Self-propelled Oil Free Vertical Mast-type AWP
AMW4.8-6200

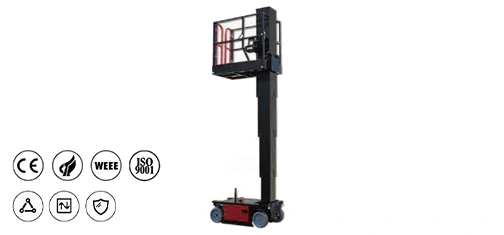

Self-propelled Oil Free Vertical Mast-type AWP
Oil-free AWP uses an electric actuator instead of hydraulic power, eliminating the need for hydraulic oil.
The all-electric AWP does not produce exhaust fumes and is quieter than traditional hydraulic AWPs.
The sleeve structure has excellent stability and little shaking.
Max Working Height:
6.8 m
Platform Size:
1.3×0.7 m
Loading Capacity:
227 kg
Machine Highlights
- Using high-quality sliders, the friction coefficient and thermal expansion and contraction coefficient are small, and it is maintenance-free for life.
- Automatic pothole protection system. When the platform rises, the protective plate automatically opens to prevent the equipment from falling into potholes and tipping over.
- Equipped with an automatic braking system; maximum braking distance: 61 cm ± 30 cm.
- Anti-pinch protection. When the device drops to 2 meters, it will automatically stop descending. After 3 seconds, press the down button again to descend.
- It is equipped with an emergency descent knob, which can be used for emergency descent in case of an emergency.
- The equipment complies with CE (SGS) certification and ISO9001 certification.
Specifications

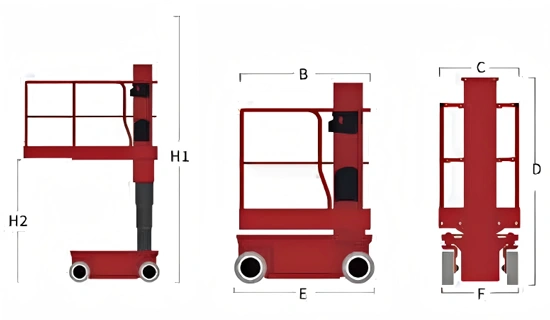

| Model | AMW4.8-6200 |  |
| Max Working Height (H1) | 6.8 m | |
| Max. Platform Height (H2) | 4.8 m | |
| Loading Capacity | 227 kg | |
| Platform Size (B×C) | 1.3×0.7 m | |
| Overall Dimension (E×F×D) | 1.36×0.76×1.98 m | |
| Drive Tyres | Φ305×100 mm | |
| Travel Speed (Stowed/ Raised) | 4.0/11 km/h | |
| Up/Down Speed | 41.5/42 sec | |
| Weight | 980 kg |
