Trailer Articulated AWP
Trailer arm with standard specifications.
Trailer-driven, with main arm lifting, main arm telescopic, turntable rotation with detailed buffer function, anti-impact.
The legs are levelled by handle control.
Lifting Height:
19.8 m
Operating Radius:
12 m
Load Capacity:
200 kg

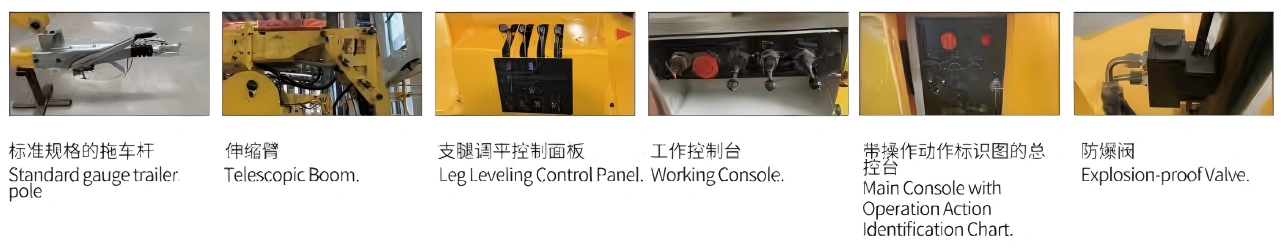

Machine Highlights
- Table with operation action identification diagram, easy to understand and operate.
- Emergency switch. In case of emergency, it stops the equipment at the push of a button.
- Optional wireless remote control.
- Adopts a proportional electric hydraulic control system; can adjust the lifting and rotating speed.
- Alarm system: overload buzzer alarm, sliding bridge buzzer alarm.
- Plug-in/battery power is available for lifting and lowering.

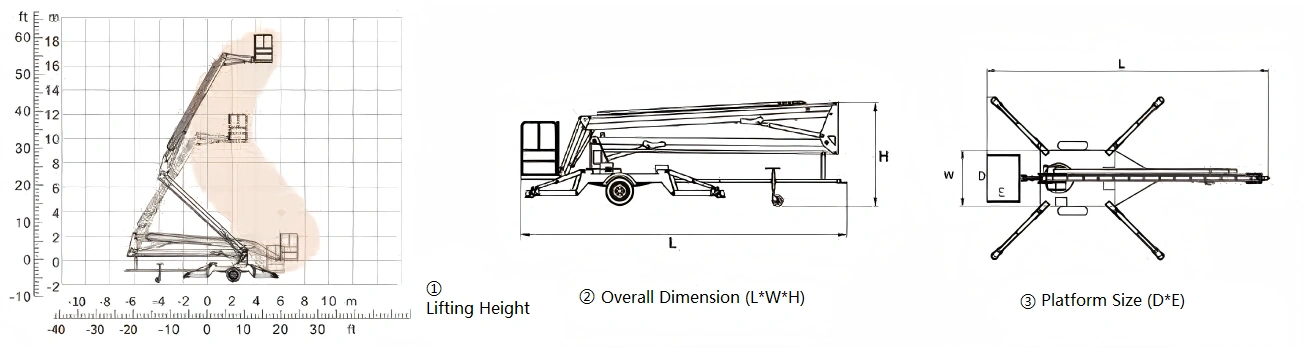

Specifications
| Model | Overall Dimension (mm) | Lifting Height (m) | Load Capacity (kg) | Operating Radius (m) | Weight (kg) | Platform Size (mm) |
| TGZT8 | 5200*1585*1900 | 8 | 200 | 4.5 | 1500 | 1200*800 |
| TGZT10 | 5400*1665*1900 | 10 | 200 | 5 | 1700 | 1200*800 |
| TGZT12 | 6400*1665*1900 | 12 | 200 | 6 | 2000 | 1200*800 |
| TGZT14 | 6200*1730*2100 | 14 | 200 | 8.5 | 2350 | 1200*800 |
| TGZT16 | 7000*1730*2200 | 16 | 200 | 9 | 2600 | 1200*800 |
| TGZT18 | 7100*1850*2260 | 18 | 200 | 10 | 4300 | 1200*800 |
| TGZT20 | 7700*1850*2260 | 19.8 | 200 | 12 | 4450 | 1200*800 |
