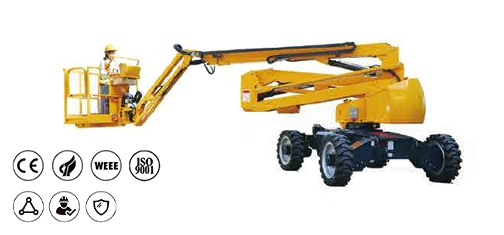

Self-Propelled Articulated AWP
Boom expansion, amplitude variation, rotation, and platform movement can be carried out simultaneously.
Working bucket with automatic leveling function; relative horizontal plane tilt.
The angle is no more than 1.5°.
Lifting Height:
16 m
Platfom Size:
1.2*0.8 m
Load Capacity:
200 kg

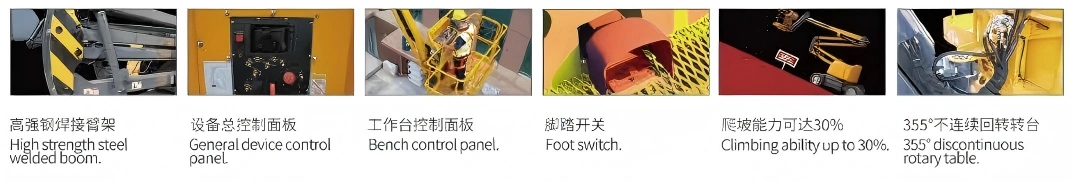

Machine Highlights
- The traveling pump is a closed-piston electric proportional variable pump, which can carry out stepless speed regulation.
- Equipped with a ground console and platform console, it can use a reversing switch to change the control mode.
- PLC and CAN bus control mode; modular structure control is durable.
- Equipped with a 12V auxiliary power device, which can safely lower the work bucket down to the ground when the engine or the main oil pump fails.
- Foot switch: only step on the foot switch to operate, heenaksaocsfitrtan ronment.
- The engine intake system adopts close two stage filtration to adapt to dusty environment.
- When the equipment is walking and turning, it wil emit a sound and a light alarm.

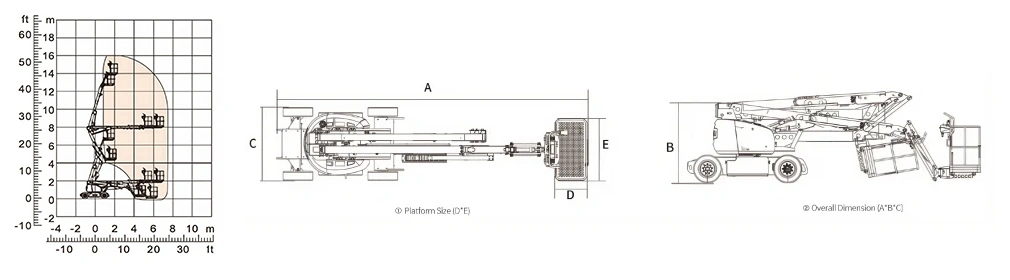

Specifications
| Model | Lifting Height (m) | Platfom Size (mm) | Overall Dimension (mm) | Load Capacity (kg) |
| TGZQ12 | 12 | 1200*800 | 5910*1960*2450 | 200 |
| TGZQ14 | 14 | 1200*800 | 6300*1960*2450 | 200 |
| TGZQ16 | 16 | 1200*800 | 6850*1960*2450 | 200 |
